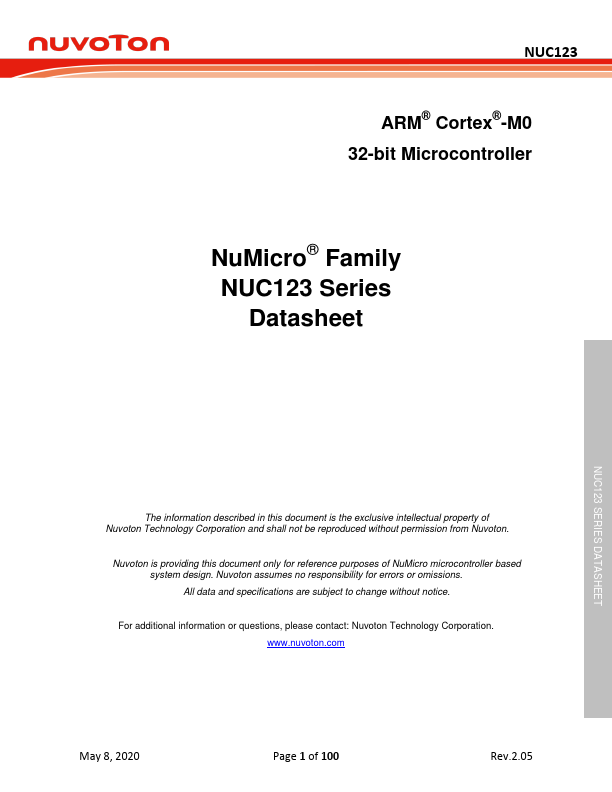

NUC123SC2AE1 Overview
Key Specifications
Package: LFQFP
Operating Voltage: 3.3 V
Max Voltage (typical range): 5 V
Min Voltage (typical range): 2.5 V

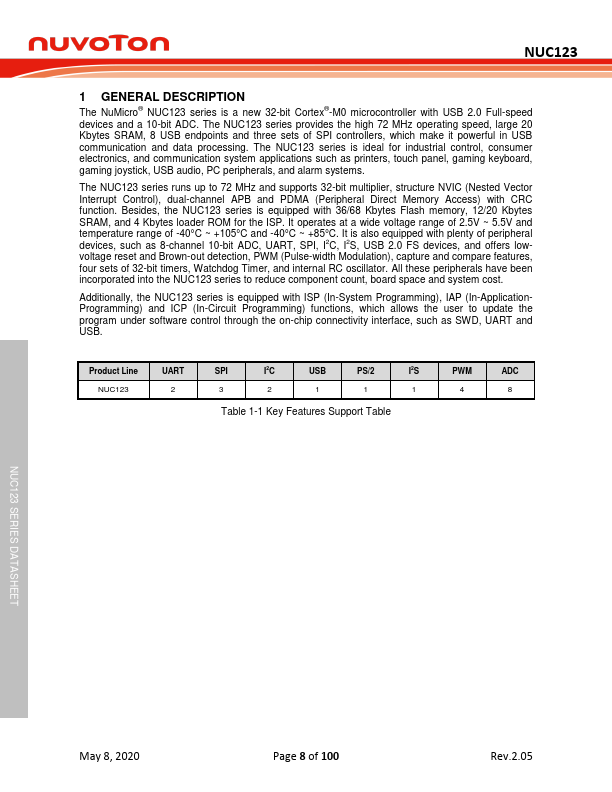

Description
The NuMicro® NUC123 series is a new 32-bit Cortex® -M0 microcontroller with USB 2.0 Full-speed devices and a 10-bit ADC. The NUC123 series provides the high 72 MHz operating speed, large 20 Kbytes SRAM, 8 USB endpoints and three sets of SPI controllers, which make it powerful in USB communication and data processing.

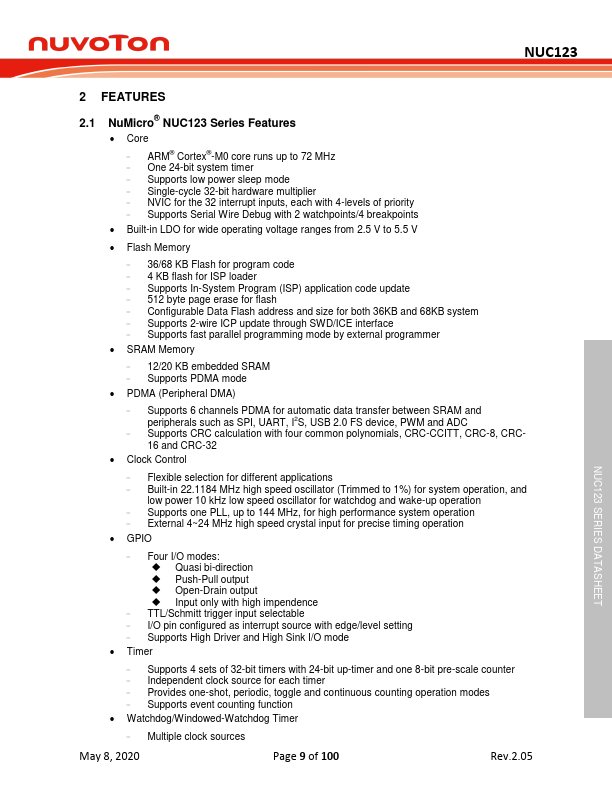

Key Features
- four sets of 32-bit timers, Watchdog Timer, and internal RC oscillator
