NUC126SG4AE Overview
Key Specifications
Package: LFQFP
Operating Voltage: 3.3 V
Max Voltage (typical range): 5.5 V
Min Voltage (typical range): 2.5 V

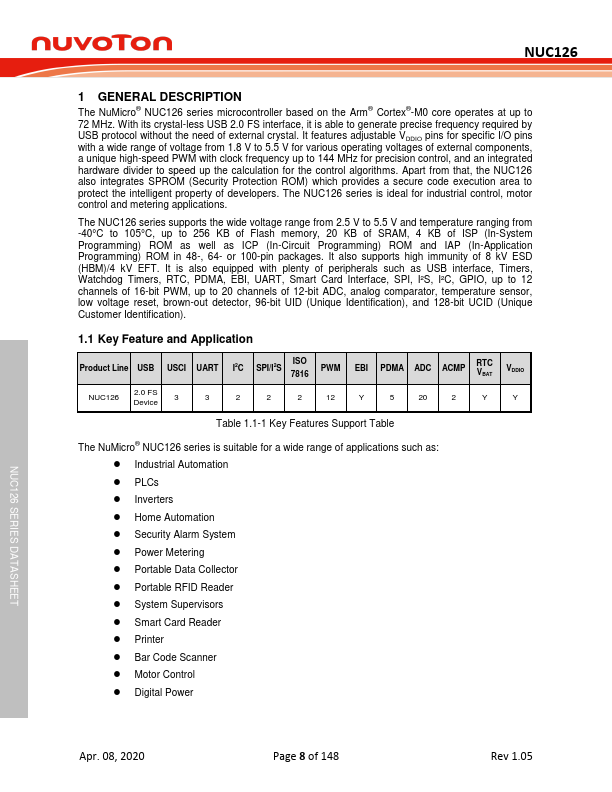

Description
The NuMicro® NUC126 series microcontroller based on the Arm® Cortex® -M0 core operates at up to 72 MHz. With its crystal-less USB 2.0 FS interface, it is able to generate precise frequency required by USB protocol without the need of external crystal.

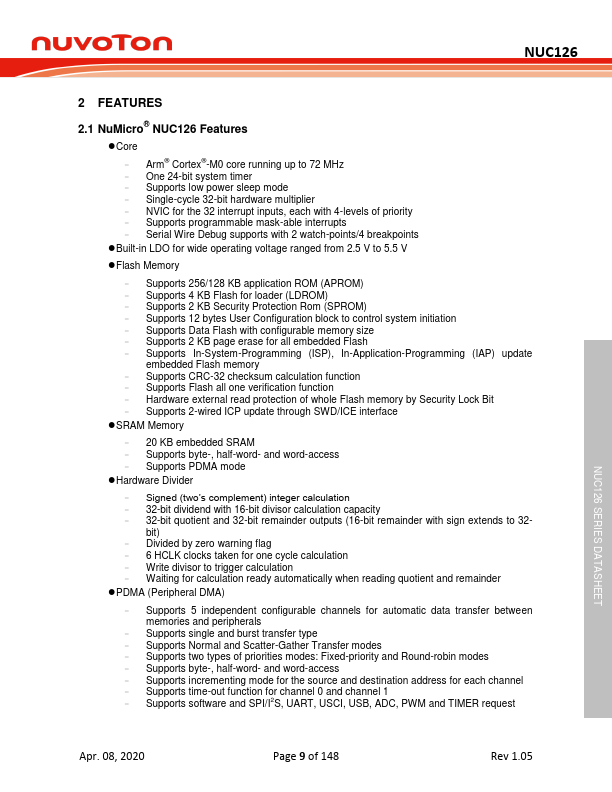

Key Features
- The NUC126 series is ideal for industrial control, motor control and metering applications
- It also supports high immunity of 8 kV ESD (HBM)/4 kV EFT
- It is also equipped with plenty of peripherals such as USB inter
