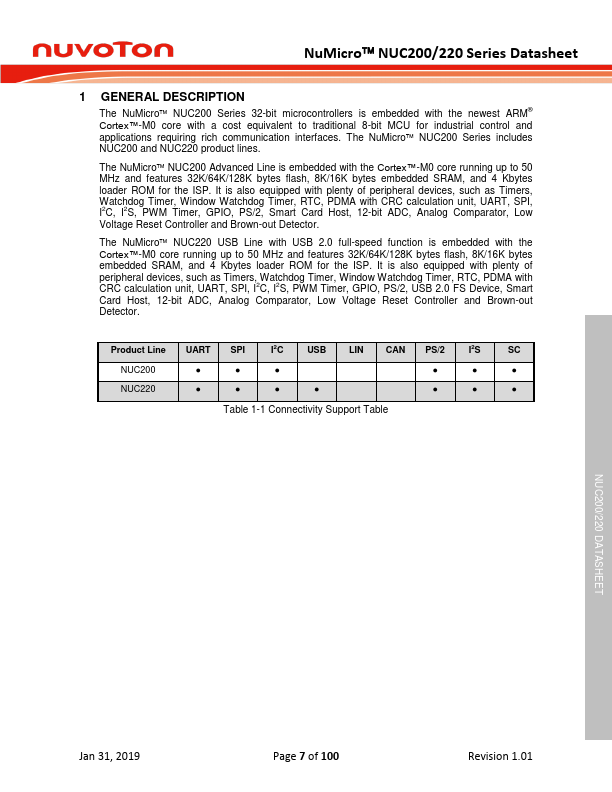

NUC200 Description
The NuMicro NUC200 Series 32-bit microcontrollers is embedded with the newest ARM® Cortex™-M0 core with a cost equivalent to traditional 8-bit MCU for industrial control and applications requiring rich munication interfaces. The NuMicro NUC200 Series includes NUC200 and NUC220 product lines. The NuMicro NUC200 Advanced Line is embedded with the Cortex™-M0 core running up to 50 MHz.

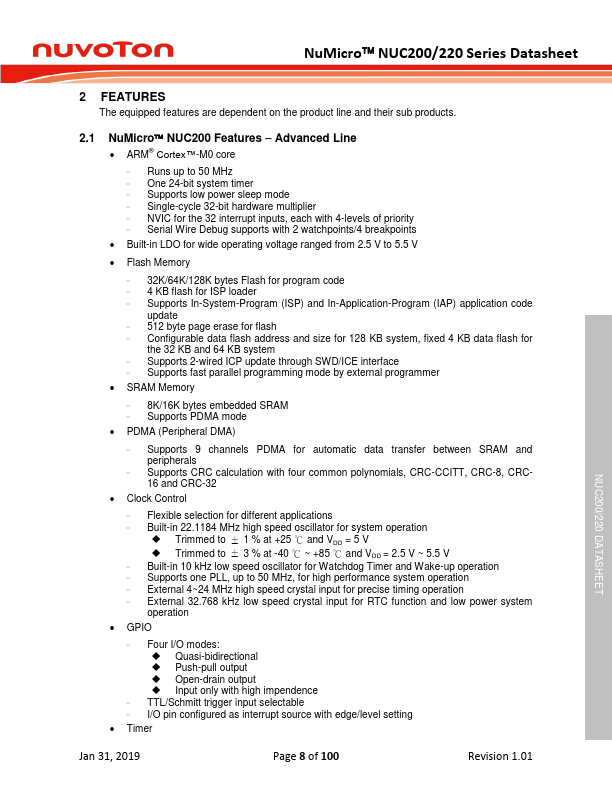

NUC200 Key Features
- Table 1-1 Connectivity Support Table
- Advanced Line
- ARM® Cortex™-M0 core
- Runs up to 50 MHz
- One 24-bit system timer
- Supports low power sleep mode
- Single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-levels of priority
- Serial Wire Debug supports with 2 watchpoints/4 breakpoints
- Built-in LDO for wide operating voltage ranged from 2.5 V to 5.5 V
