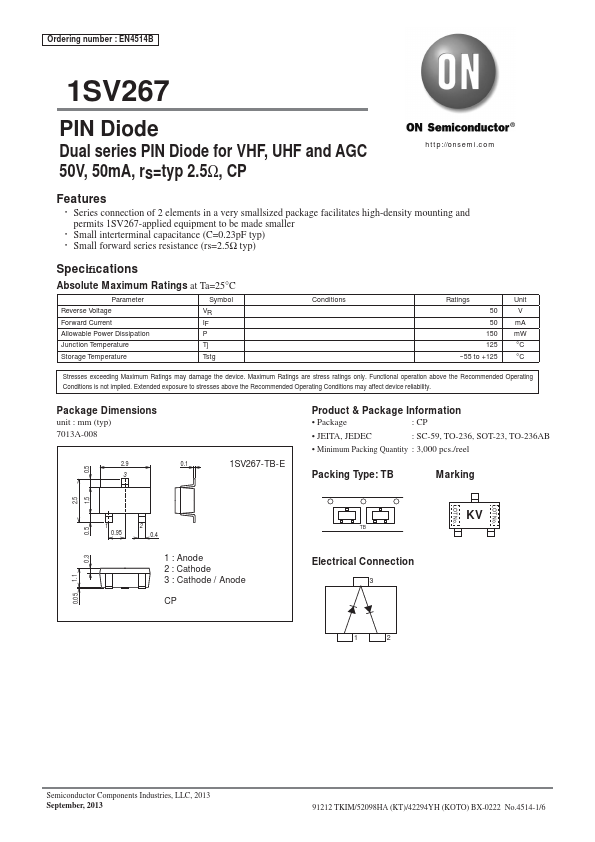

1SV267
Features
- Series connection of 2 elements in a very smallsized package facilitates high-density mounting and permits 1SV267-applied equipment to be made smaller
- Small interterminal capacitance (C=0.23p F typ)
- Small forward series resistance (rs=2.5Ω typ)
Specifications
Absolute Maximum Ratings at Ta=25°C
Parameter
Symbol
Reverse Voltage
Forward Current
Allowable Power Dissipation
Junction Temperature
Tj
Storage Temperature
Tstg
Conditions
Ratings
Unit
50 m A
150 m W
°C
--55 to +125
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Remended Operating Conditions is not implied. Extended exposure to stresses above the Remended Operating Conditions may affect device reliability.
Package Dimensions unit : mm (typ) 7013A-008
1SV267-TB-E
Product & Package Information
- Package
: CP
- JEITA, JEDEC
: SC-59, TO-236, SOT-23,...
