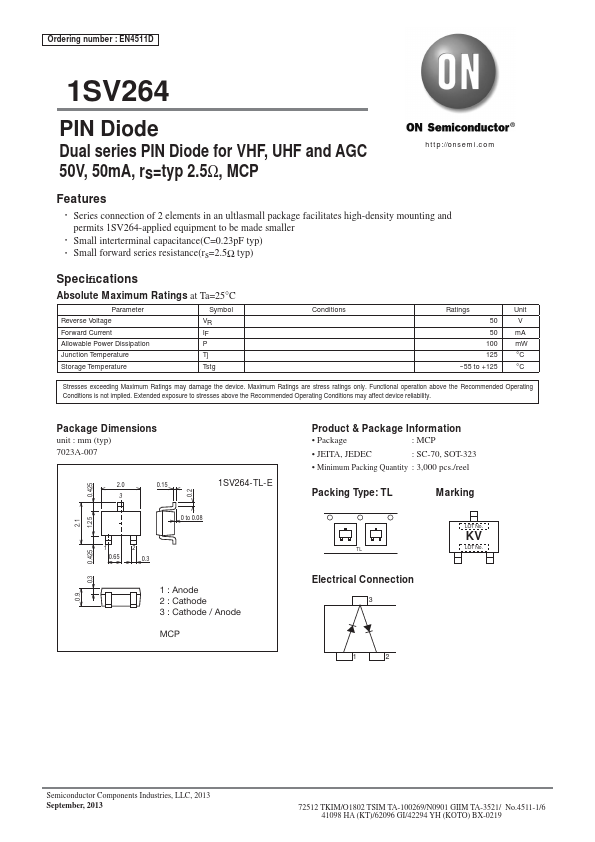

1SV264
Features
- Series connection of 2 elements in an ultlasmall package facilitates high-density mounting and permits 1SV264-applied equipment to be made smaller
- Small interterminal capacitance(C=0.23p F typ)
- Small forward series resistance(rs=2.5Ω typ)
Specifications
Absolute Maximum Ratings at Ta=25°C
Parameter Reverse Voltage Forward Current Allowable Power Dissipation Junction Temperature Storage Temperature
Symbol VR IF P Tj Tstg
Conditions
Ratings 50 50
100 125 --55 to +125
Unit V m A m W °C °C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Remended Operating Conditions is not implied. Extended exposure to stresses above the Remended Operating Conditions may affect device reliability.

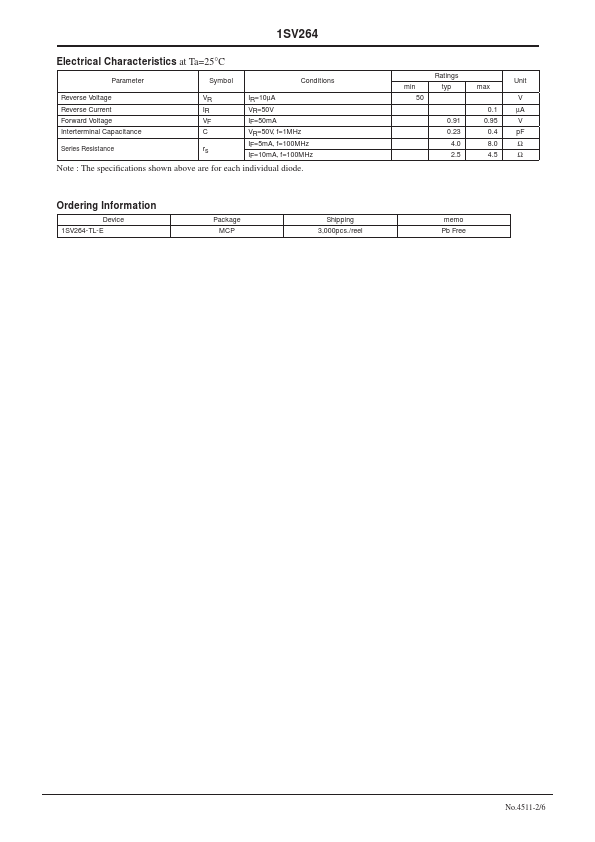

Package Dimensions unit : mm (typ) 7023A-007
1SV264-TL-E
0 to 0.08
0.3 0.425
1 : Anode 2 : Cathode 3 : Cathode / Anode

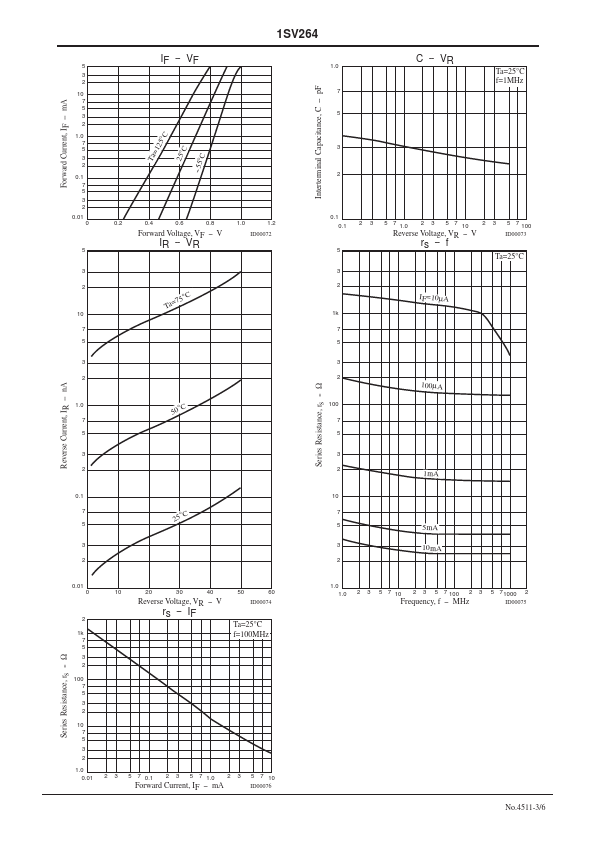

Product & Package...
