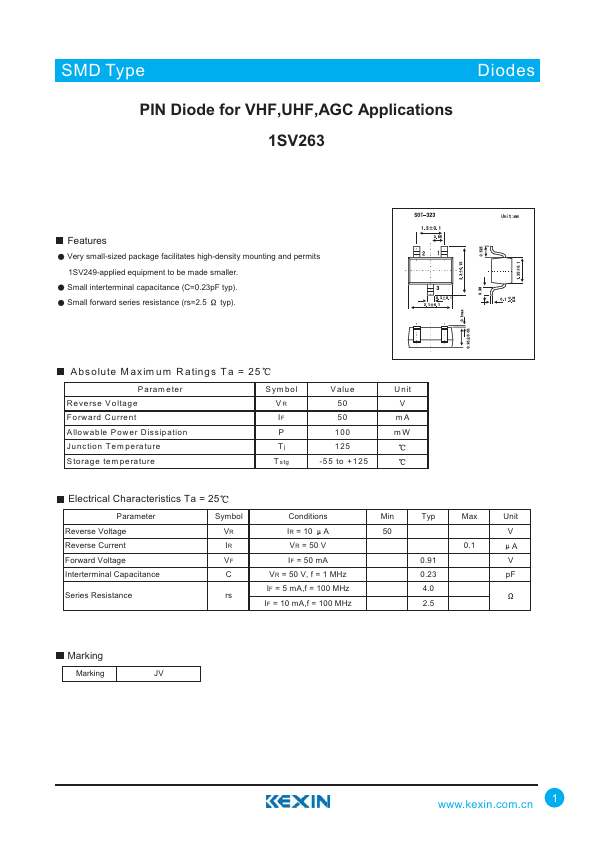

1SV263
Features
Very small-sized package facilitates high-density mounting and permits 1SV249-applied equipment to be made smaller. Small interterminal capacitance (C=0.23p F typ). Small forward series resistance (rs=2.5 typ).
Absolute M axim um R atings T a = 25
Param eter Reverse Voltage Forward Current Allowable Power Dissipation Junction Tem perature Storage tem perature
Sym bol VR IF P Tj T stg
V a lu e 50 50 100 125
-55 to +125
U n it V m A m W
Electrical Characteristics Ta = 25
Parameter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance
Symbol VR IR VF C
Series Resistance rs
Conditions IR = 10 A VR = 50 V IF = 50 m A VR = 50 V, f = 1 MHz IF = 5 m A,f = 100 MHz IF = 10 m A,f = 100 MHz
Min
Typ
Max
Unit
0.23 p F
Marking
Marking
