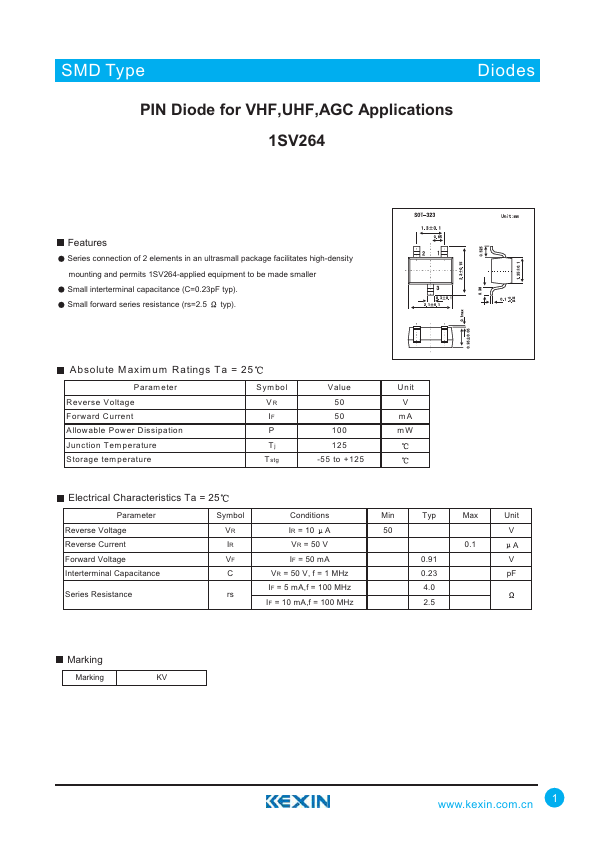

1SV264
Features
Series connection of 2 elements in an ultrasmall package facilitates high-density mounting and permits 1SV264-applied equipment to be made smaller Small interterminal capacitance (C=0.23p F typ). Small forward series resistance (rs=2.5 typ).
Absolute M axim um Ratings Ta = 25
Param eter Reverse Voltage Forward Current Allowable Power Dissipation Junction Tem perature Storage tem perature
Sym bol VR IF P Tj T stg
V a lu e 50 50 100 125
-55 to +125
U n it V m A m W
Electrical Characteristics Ta = 25
Parameter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance
Series Resistance
Symbol
Conditions
Min
Typ
Max
Unit
IR = 10 A
VR = 50 V
IF = 50 m A
VR = 50 V, f = 1 MHz
0.23 p F
IF = 5 m A,f = 100 MHz
4.0 rs
IF = 10 m A,f = 100 MHz
Marking
Marking
