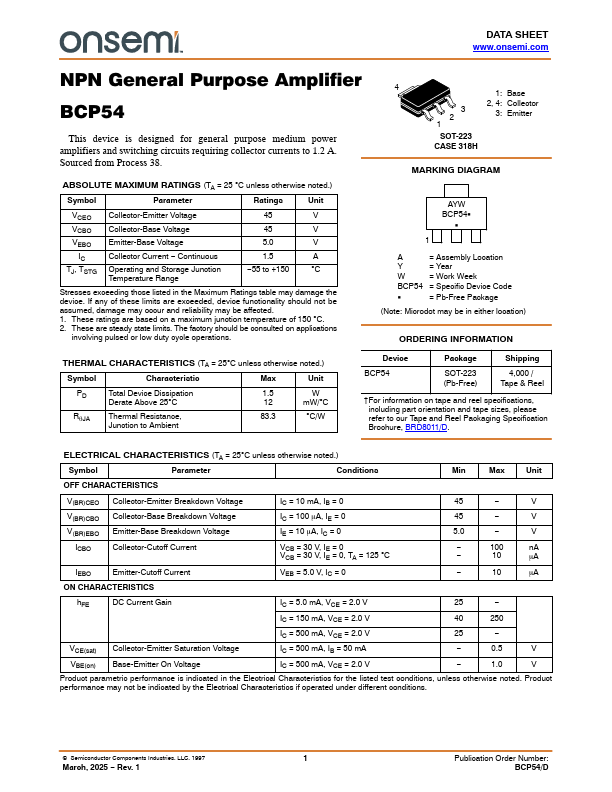

BCP54 Datasheet PDF

ABSOLUTE MAXIMUM RATINGS

(TA = 25 C unless otherwise noted.) Symbol Parameter Ratings Unit VCEO VCBO VEBO IC TJ, TSTG Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current − Continuous Operating and Storage Junction Temperature Range 45 V 45 V 5.0 V 1.5 A −55 to +150 C Stresses exceeding those listed in the

MAXIMUM RATINGS

table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. These ratings are based on a maximum junction temperature of 150 C. 2. These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations. 4 1: Base 3 2 1 2, 4: Collector 3: Emitter SOT-223 CASE 318H MARKING DIAGRAM AYW BCP54G G 1 A = Assembly Location Y = Year W = Work Week BCP54 = Specific Device Code G = Pb-Free Package (Note: Microdot may be in either location) ORDERING INFORMATION THERMAL CHARACTERISTICS (TA...
