onsemi DAP011D

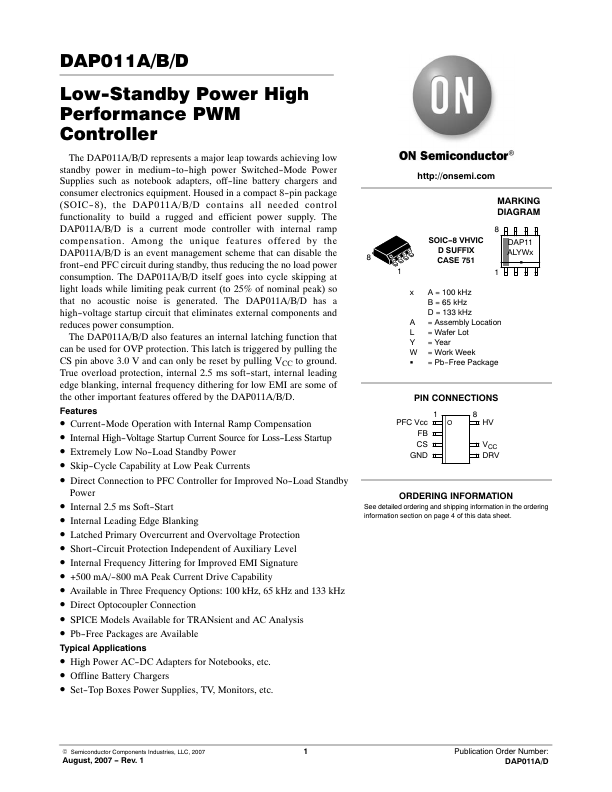

The DAP011A/B/D represents a major leap towards achieving low standby power in medium-to-high power Switched-Mode Power Supplies such as notebook adapters, off-line battery chargers and consumer electronics equipment. The DAP011A/B/D is a current mode controller with internal ramp compensation. The DAP011A/B/D itself goes into cycle skipping at light loads while limiting peak current (to 25% of nominal peak) so that no acoustic noise is generated.| Part No. | DAP011D |
|---|---|
| Datasheet | DAP011D Download |
| Manufacturer |  onsemi |
| Description | Low-Standby Power High Performance PWM Controller |
| Buy | Stock & Price |
FEATURES
●ăCurrent-Mode Operation with Internal Ramp Compensation●ăInternal High-Voltage Startup Current Source for Loss-Less Startup
●ăExtremely Low No-Load Standby Power
●ăSkip-Cycle Capability at Low Peak Currents
●ăDirect Connection to PFC Controller for Improved No-Load Standby Power
●ăInternal 2.5 ms Soft-Start
●ăInternal Leading Edge Blanking
●ăLatched Primary Overcurrent and Overvoltage Protection
●ăShort-Circuit Protection Independent of Auxiliary Level
●ăInternal Frequency Jittering for Improved EMI Signature
●ă+500 mA/-800 mA Peak Current Drive Capability
●ăAvailable in Three Frequency Options: 100 kHz, 65 kHz and 133 kHz
●ăDirect Optocoupler Connection
●ăSPICE Models Available for TRANsient and AC Analysis
●ăPb-Free Packages are Available Typical
APPLICATIONS
●ăHigh Power AC-DC Adapters for Notebooks, etc.●ăOffline Battery Chargers
●ăSet-Top Boxes Power Supplies, TV, Monitors, etc. MARKING DIAGRAM 8 SOIC-8 VHVIC DAP11 8 D SUFFIX CASE 751 ALYWx G 1 1 x A = 100 kHz B = 65 k...
