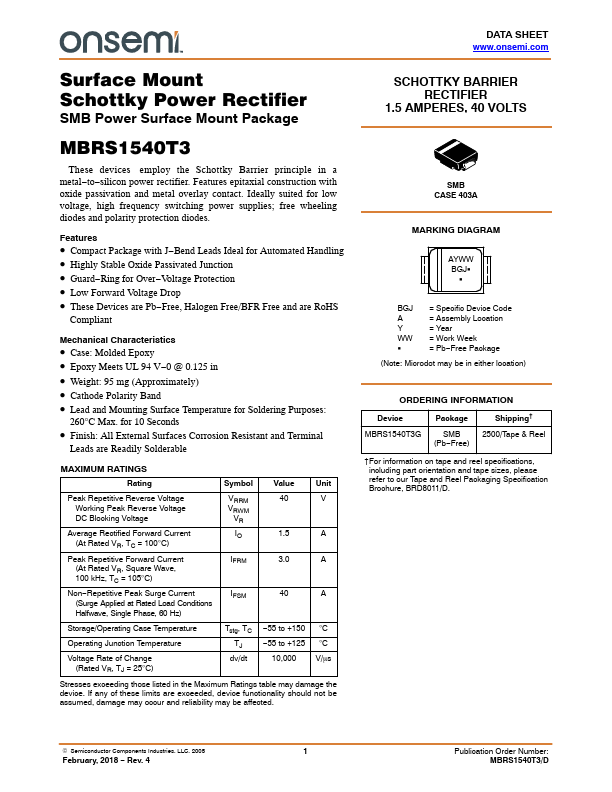

MBRS1540T3 Datasheet | onsemi

Features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes. Features - pact Package with J- Bend Leads Ideal for Automated Handling - Highly Stable Oxide Passivated Junction - Guard- Ring for Over- Voltage Protection - Low Forward Voltage Drop - These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant Mechanical Characteristics - Case: Molded Epoxy - Epoxy Meets UL 94 V- 0 @ 0.125 in - Weight: 95 mg (Approximately) - Cathode Polarity Band - Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds - Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable MAXIMUM RATINGS Rating Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM Average Rectified Forward Current (At Rated VR, TC = 100°C) Peak Repetitive Forward Current (At Rated VR, Square Wave, 100 k Hz, TC = 105°C) IFRM Non- Repetitive Peak Surge Current IFSM (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) Storage/Operating Case Temperature Operating Junction Temperature Voltage Rate of Change (Rated VR, TJ =...
