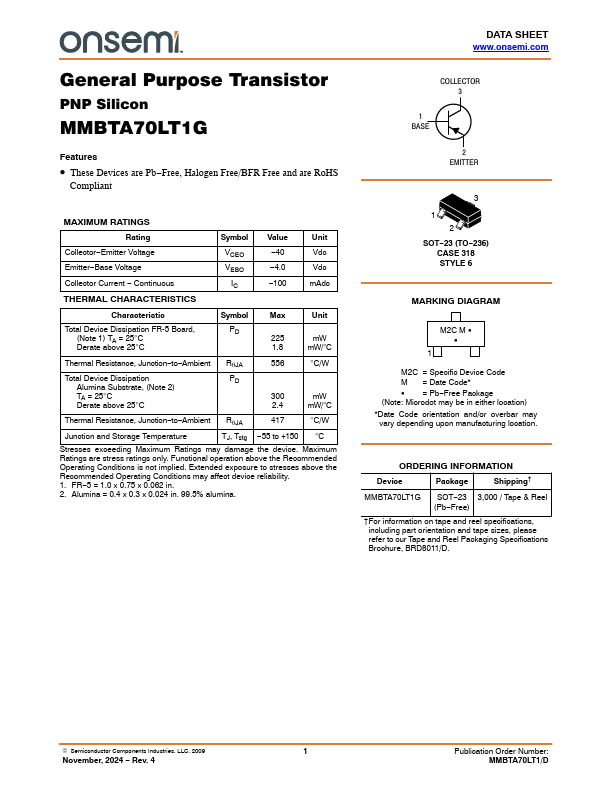

Datasheet Summary
General Purpose Transistor
PNP Silicon
Features
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS
Rating
Symbol Value
Unit
Collector- Emitter Voltage Emitter- Base Voltage Collector Current
- Continuous THERMAL CHARACTERISTICS
VCEO VEBO
- 40
- 4.0
- 100
Vdc Vdc mAdc
Characteristic
Total Device Dissipation FR-5 Board, (Note 1) TA = 25°C Derate above 25°C
Symbol PD
Max
225 1.8
Unit mW mW/°C
Thermal Resistance, Junction- to- Ambient
Total Device Dissipation Alumina Substrate, (Note 2) TA = 25°C Derate above 25°C
RqJA PD
°C/W
300 mW
2.4 mW/°C
Thermal Resistance, Junction- to- Ambient RqJA
°C/W
Junction and Storage...
