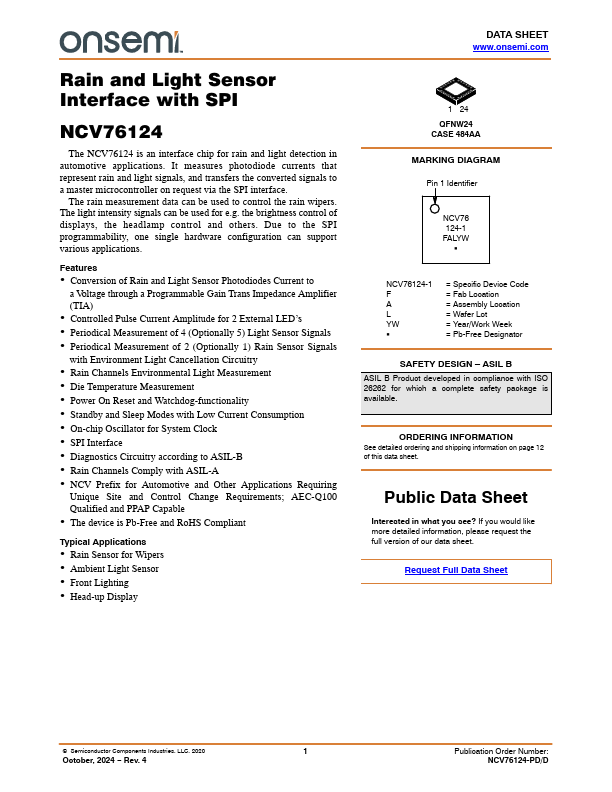

NCV76124 Description
Rain and Light Sensor Interface with SPI NCV76124 The NCV76124 is an interface chip for rain and light detection in automotive applications. It measures photodiode currents that represent rain and light signals, and transfers the converted signals to a master microcontroller on request via the SPI interface. The rain measurement data can be used to control the rain wipers.
NCV76124 Key Features
- Controlled Pulse Current Amplitude for 2 External LED’s
- Periodical Measurement of 4 (Optionally 5) Light Sensor Signals
- Periodical Measurement of 2 (Optionally 1) Rain Sensor Signals
- Rain Channels Environmental Light Measurement
- Die Temperature Measurement
- Power On Reset and Watchdog-functionality
- Standby and Sleep Modes with Low Current Consumption
- On-chip Oscillator for System Clock
- SPI Interface
- Diagnostics Circuitry according to ASIL-B
