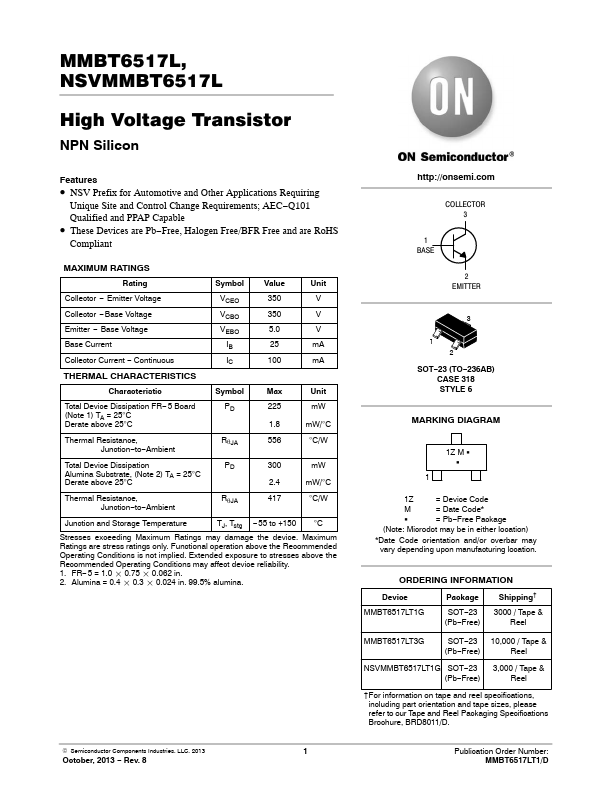

NSVMMBT6517L
NSVMMBT6517L is High Voltage NPN Silicon Transistor manufactured by onsemi.
Features
- NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS
Rating
Symbol Value
Unit
Collector
- Emitter Voltage
VCEO
Collector
- Base Voltage
VCBO
Emitter
- Base Voltage
VEBO
Base Current
25 m A
Collector Current
- Continuous
100 m A
THERMAL CHARACTERISTICS
Characteristic
Symbol
Max
Unit
Total Device Dissipation FR- 5 Board
(Note 1) TA = 25°C
Derate above 25°C
225 m W
1.8 m W/°C
Thermal Resistance, Junction- to- Ambient
Rq...
