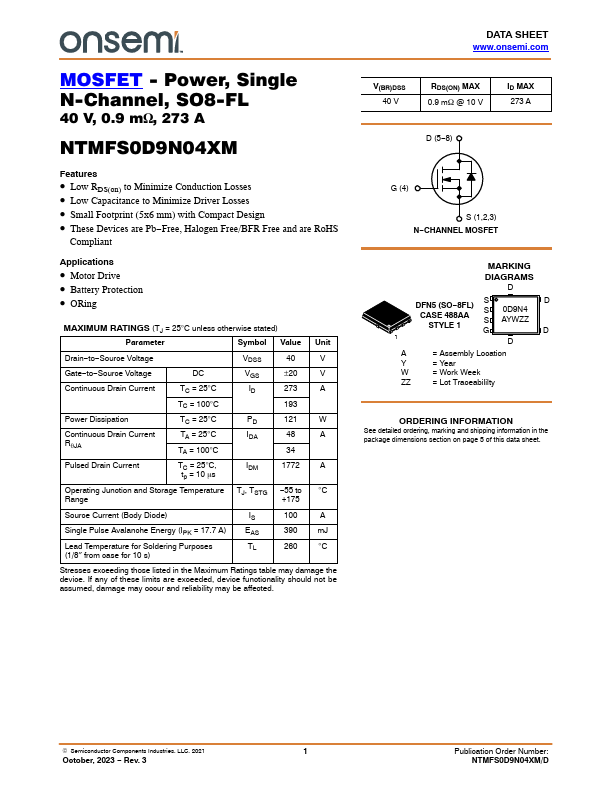

NTMFS0D9N04XM
Features
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- Small Footprint (5x6 mm) with pact Design
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Applications
- Motor Drive
- Battery Protection
- ORing
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain Current
TC = 25°C
TC = 100°C
Power Dissipation
TC = 25°C
Continuous Drain Current
TA = 25°C
Rq JA
TA = 100°C
Pulsed Drain Current
TC = 25°C, tp = 10 ms
1772 A
Operating Junction and Storage Temperature TJ, TSTG
- 55 to...
