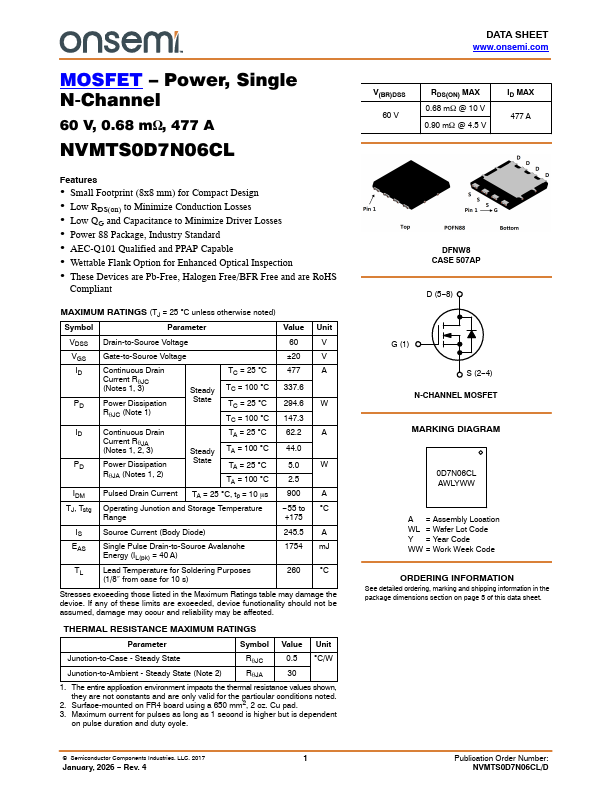

NVMTS0D7N06CL
Features
- Small Footprint (8x8 mm) for pact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- Power 88 Package, Industry Standard
- AEC-Q101 Qualified and PPAP Capable
- Wettable Flank Option for Enhanced Optical Inspection
- These Devices are Pb-Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS (TJ = 25 C unless otherwise noted)
Symbol
Parameter
Value Unit
VDSS Drain-to-Source Voltage
VGS Gate-to-Source Voltage
20
Continuous Drain
Current Rq JC
(Notes 1, 3)
PD Power Dissipation Rq JC (Note 1)
TC = 25 C
Steady TC = 100 C 337.6 State TC = 25 C 294.6 W
TC = 100 C 147.3
Continuous Drain
Current Rq JA
(Notes 1, 2, 3)
PD Power Dissipation Rq JA (Notes 1, 2)
TA = 25 C
Steady TA = 100 C 44.0
State
TA = 25 C
TA = 100 C
IDM Pulsed Drain Current TA = 25 C, tp = 10 ms...
