PE42440 Datasheet Sp4t Rf Switch

Manufacturer: pSemi

Overview: PE42440 Document category: Product Specification UltraCMOS® SP4T RF Switch, 50–3000.

Datasheet Details

Part number	PE42440
Manufacturer	pSemi
File Size	923.03 KB
Description	SP4T RF Switch
Datasheet	PE42440-pSemi.pdf

General Description

The PE42440 is a HaRP™-enhanced SP4T RF switch developed on the UltraCMOS® process technology.

This general-purpose switch contains four identical RF ports and can be used in a multitude of applications up to 3000 MHz.

It integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no DC blocking capacitors.

Key Features

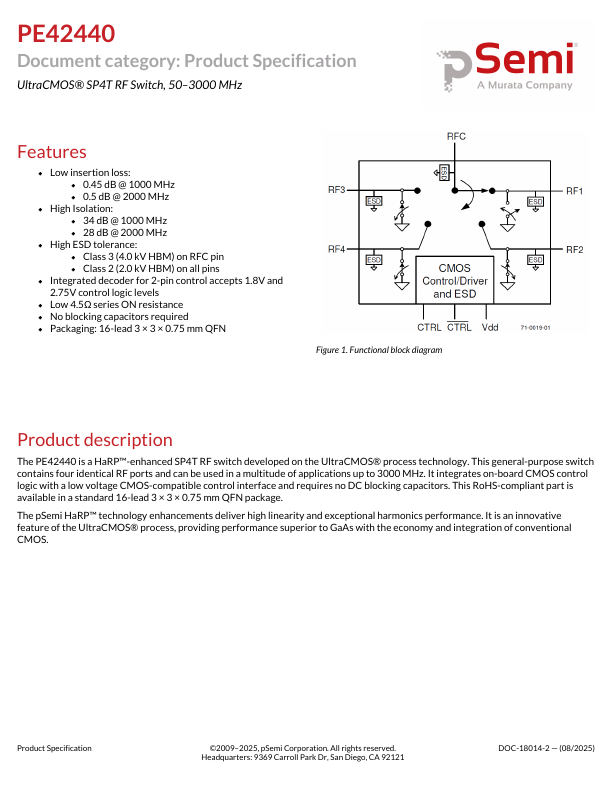

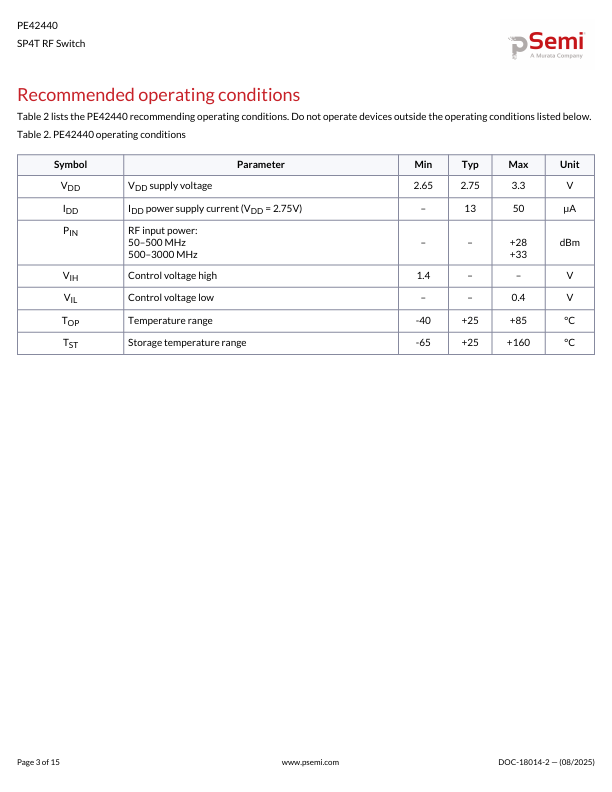

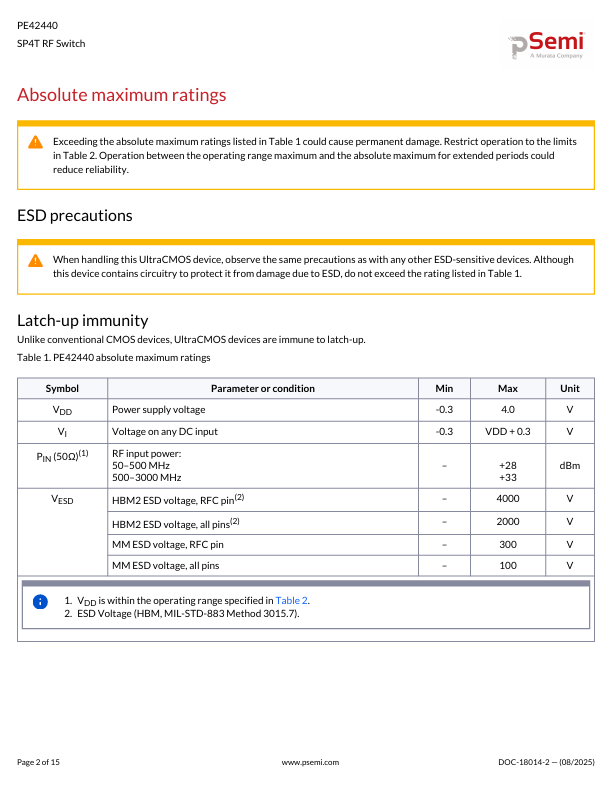

Low insertion loss: 0.45 dB @ 1000 MHz 0.5 dB @ 2000 MHz High Isolation: 34 dB @ 1000 MHz 28 dB @ 2000 MHz High ESD tolerance: Class 3 (4.0 kV HBM) on RFC pin Class 2 (2.0 kV HBM) on all pins Integrated decoder for 2-pin control accepts 1.8V and 2.75V control logic levels Low 4.5Ω series ON resistance No blocking capacitors required Packaging: 16-lead 3 × 3 × 0.75 mm QFN Figure 1. Functional block diagram Product.
