PE42452 Datasheet Sp5t Rf Switch

Manufacturer: pSemi

Overview: PE42452 Document category: Product Specification UltraCMOS® SP5T RF Switch, 450–4000.

Datasheet Details

Part number	PE42452
Manufacturer	pSemi
File Size	1.14 MB
Description	SP5T RF Switch
Datasheet	PE42452-pSemi.pdf

General Description

The PE42452 is a HaRP™ technology-enhanced absorptive SP5T RF switch designed for use in 3G/4G wireless infrastructure and other high performance RF applications.

This switch is a pin-compatible upgraded version of the PE42451 with 1.8V control logic.

It consists of five symmetric RF ports and has extremely high isolation.

Key Features

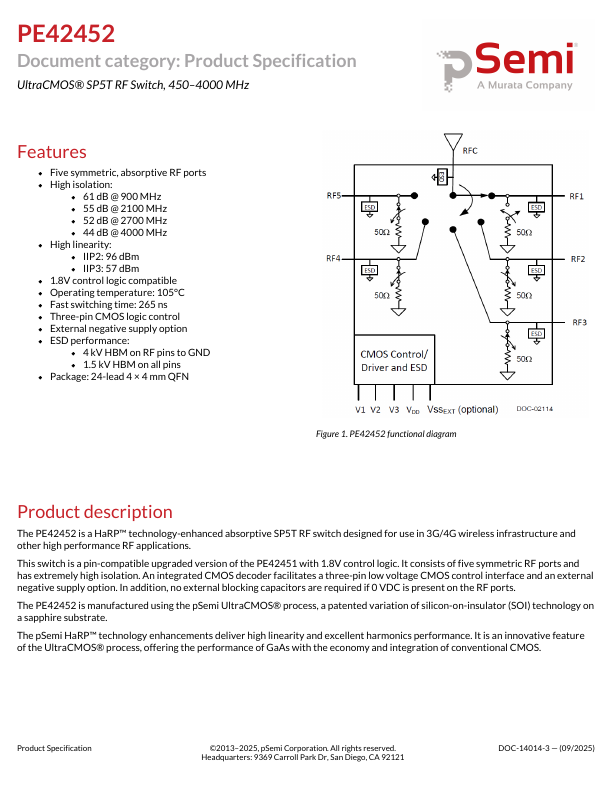

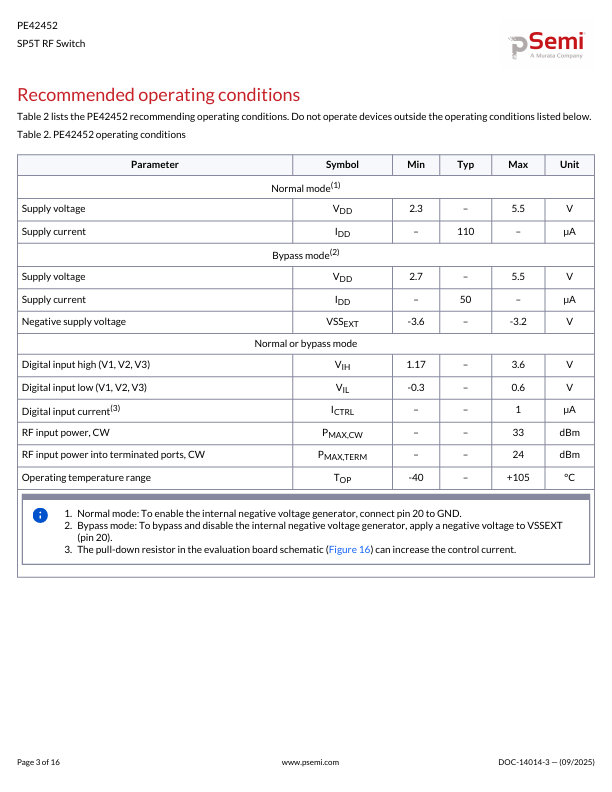

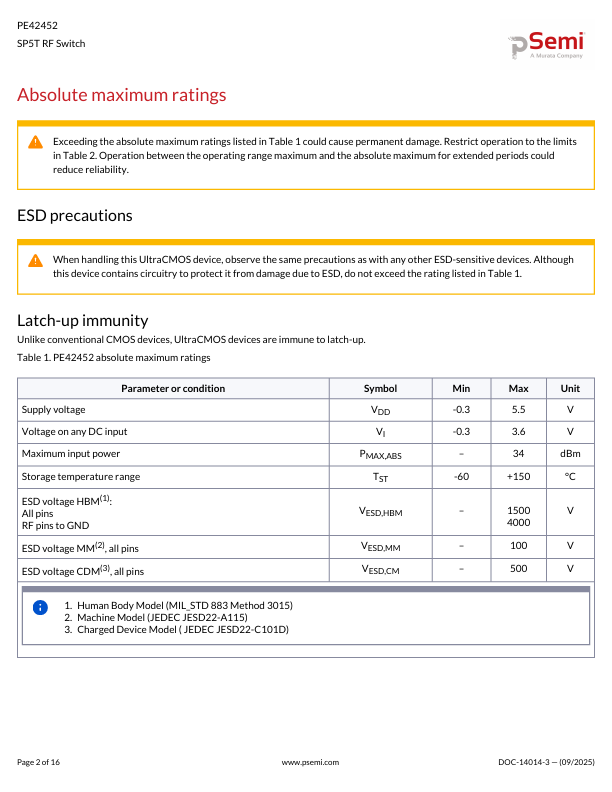

Five symmetric, absorptive RF ports High isolation: 61 dB @ 900 MHz 55 dB @ 2100 MHz 52 dB @ 2700 MHz 44 dB @ 4000 MHz High linearity: IIP2: 96 dBm IIP3: 57 dBm 1.8V control logic compatible Operating temperature: 105°C Fast switching time: 265 ns Three-pin CMOS logic control External negative supply option ESD performance: 4 kV HBM on RF pins to GND 1.5 kV HBM on all pins Package: 24-lead 4 × 4 mm QFN Figure 1. PE42452 functional diagram Product.
