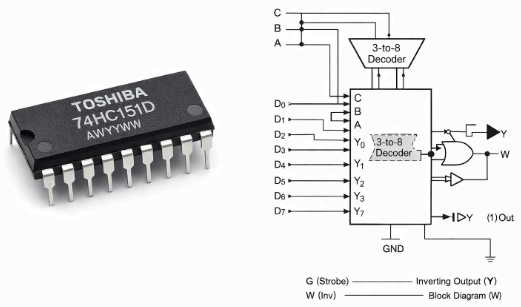

74HC151 Datasheet

The 74HC151 is a 8-input multiplexer. Download the datasheet PDF and view key features and specifications below.

Part Number74HC151
ManufacturerNexperia
Overview The 74HC151; 74HCT151 is an 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inpu. and benefits
* Wide supply voltage range from 2.0 V to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
* Input levels:
* For 74HC151: CMOS level
* For 74HCT151: TTL level
* Non-inverting data path
* Complies with JEDEC stand.
Part Number74HC151
Description8-Line To 1-Line Data Selectors/Multiplexers
ManufacturerTexas Instruments
Overview This data selector/multiplexer provides full binary decoding to select one of eight data sources. The strobe (G) input must be at a low logic level to enable the inputs. A high level at the strobe te.
* Wide operating voltage range of 2 V to 6 V
* Outputs can drive up to 10 LSTTL loads
* Low power consumption, 80-μA max ICC
* Typical tpd = 13 ns
* ±6-mA Output drive at 5 V
* Low input current of 1 μA max
* 8-Line to 1-line multiplexers can perform as:
  – Boolean-function generators
  – Parallel-to-s.
Part Number74HC151
Description8-input multiplexer
ManufacturerPhilips Semiconductors
Overview 74HC/HCT151 The 74HC/HCT151 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. QUICK REFEREN.
* True and complement outputs
* Multifunction capability
* Permits multiplexing from n lines to 1 line
* Non-inverting data path
* See the “251” for the 3-state version
* Output capability: standard
* ICC category: MSI GENERAL DESCRIPTION 74HC/HCT151 The 74HC/HCT151 are high-speed Si-gate CMOS dev.
