AOC2415 - 20V P-Channel MOSFET

Description

The AOC2415 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.5V while retaining a 8V VGS(MAX) rating.

📥 Download Datasheet

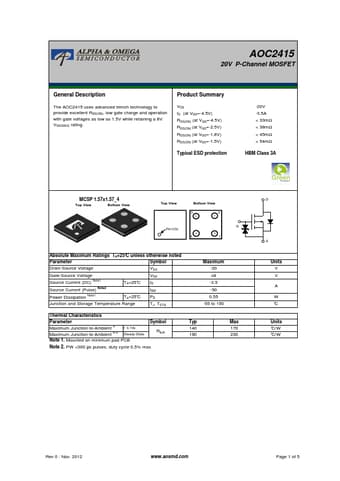

Datasheet preview – AOC2415

📁 Similar Datasheet

  • AOC2403 - 20V P-Channel MOSFET (ALPHA & OMEGA)
  • AOC-12S - AC-DC Power Module (Arch Electronics)
  • AOC-14S - AC-DC Power Module (Arch Electronics)
  • AOC-15S - AC-DC Power Module (Arch Electronics)
  • AOC-24S - AC-DC Power Module (Arch Electronics)
  • AOC-3.3S - AC-DC Power Module (Arch Electronics)
  • AOC-5S - AC-DC Power Module (Arch Electronics)
  • AOC-8S - AC-DC Power Module (Arch Electronics)
  • AOC-9S - AC-DC Power Module (Arch Electronics)
  • AOC128128A0-1.50W - OLED (ORIENT DISPLAY)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text
AOC2415 20V P-Channel MOSFET General Description The AOC2415 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.5V while retaining a 8V VGS(MAX) rating. Product Summary VDS ID (at VGS=-4.5V) RDS(ON) (at VGS=-4.5V) RDS(ON) (at VGS=-2.5V) RDS(ON) (at VGS=-1.8V) RDS(ON) (at VGS=-1.5V) Typical ESD protection -20V -3.5A < 33mΩ < 38mΩ < 45mΩ < 54mΩ HBM Class 3A MCSP 1.57x1.
