HCNR201 - High-Linearity Analog Optocouplers

Download the HCNR201 datasheet PDF (HCNR200 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high-linearity analog optocouplers.

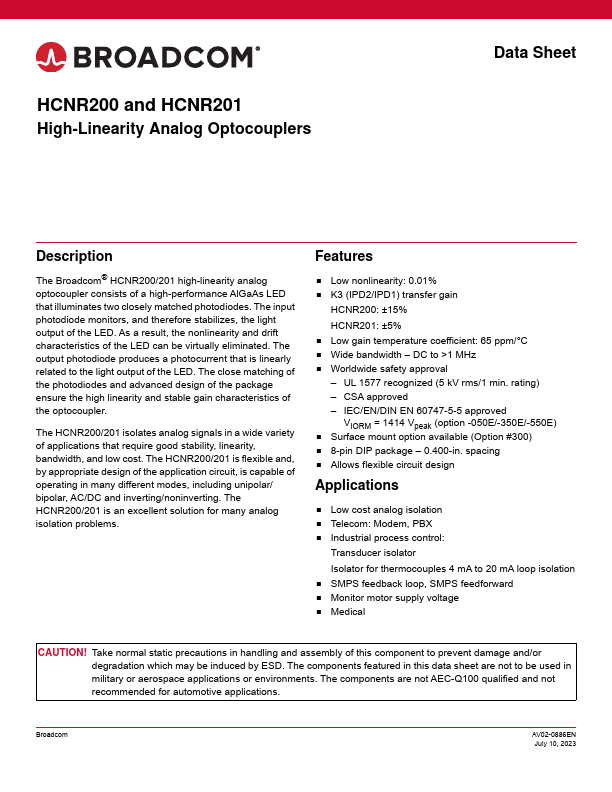

Description

The Broadcom® HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes.

The input photodiode monitors, and therefore stabilizes, the light output of the LED.

Features

  • Low nonlinearity: 0.01%.
  • K3 (IPD2/IPD1) transfer gain HCNR200: ±15% HCNR201: ±5%.
  • Low gain temperature coefficient: 65 ppm/°C.
  • Wide bandwidth.
  • DC to >1 MHz.
  • Worldwide safety approval.
  • UL 1577 recognized (5 kV rms/1 min. rating).
  • CSA approved.
  • IEC/EN/DIN EN 60747-5-5 approved VIORM = 1414 Vpeak (option -050E/-350E/-550E).

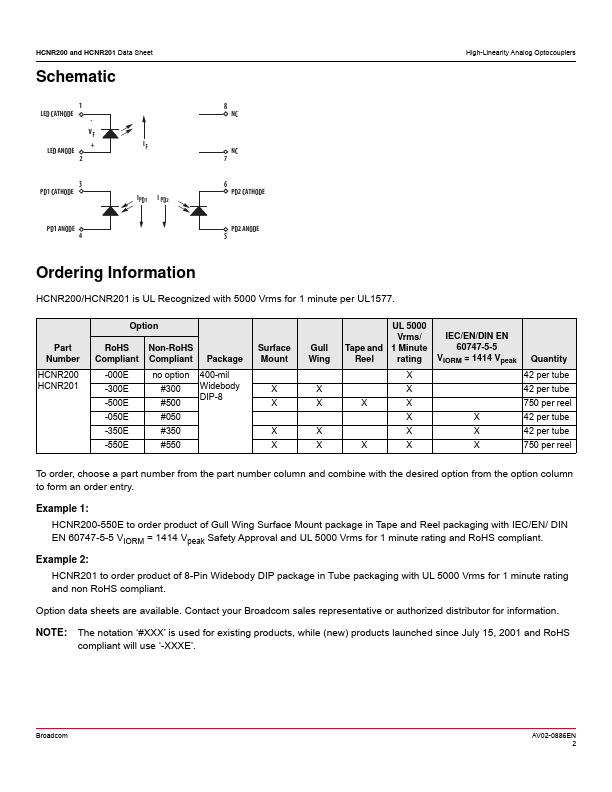

  • Surface mount option available (Option #300).

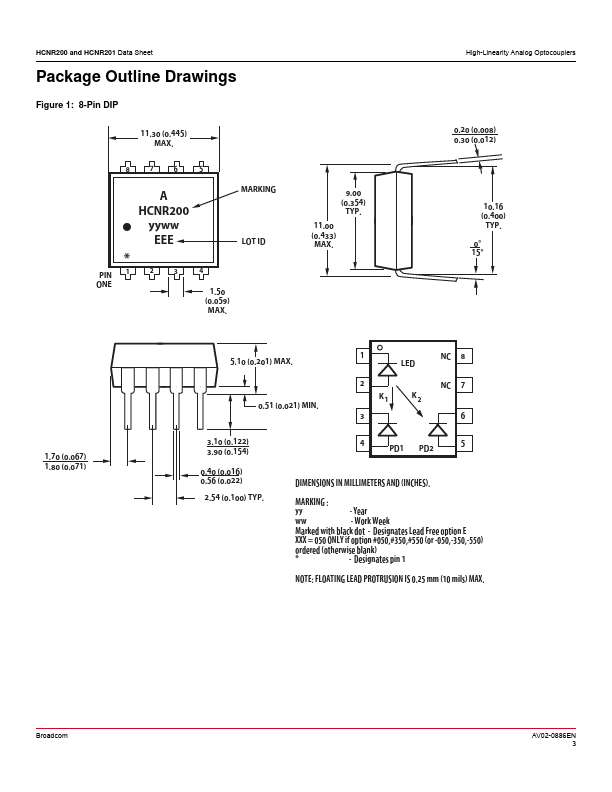

  • 8-pin DIP package.
  • 0.400-in. spacing.
  • Allows.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HCNR200-Broadcom.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HCNR201
Manufacturer Broadcom
File Size 904.94 KB
Description High-Linearity Analog Optocouplers
Datasheet download datasheet HCNR201 Datasheet

📁 Similar Datasheet

  • HCNR201 - High-Linearity Analog Optocouplers (AVAGO)
  • HCNR200 - High-Linearity Analog Optocouplers (AVAGO)
  • HCN2C60 - Silicon Controlled Rectifier (Huashan)
  • HCN3904 - GENERAL PURPOSE TRANSISTOR (HOTTECH)
  • HCNW135 - High Speed Optocouplers (HP)
  • HCNW135 - High Speed Optocouplers (AVAGO)
  • HCNW136 - High Speed Optocouplers (HP)
  • HCNW136 - High Speed Optocouplers (AVAGO)
  • HCNW137 - High Speed TTL Compatible Optocouplers (HP)
  • HCNW137 - High Speed TTL Compatible Optocouplers (Avago)
Other Datasheets by Broadcom
  • HCNR200 - High-Linearity Analog Optocouplers
  • HCNW135 - High-Speed Optocouplers
  • HCNW136 - High-Speed Optocouplers
  • HCNW137 - High Speed TTL Compatible Optocouplers
  • HCNW2601 - High Speed TTL Compatible Optocouplers
  • HCNW2611 - High Speed TTL Compatible Optocouplers
  • HCNW4562 - Analog/Video Optocouplers

Full PDF Text Transcription

Click to expand full text
HCNR200 and HCNR201 High-Linearity Analog Optocouplers Data Sheet Description The Broadcom® HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes. The input photodiode monitors, and therefore stabilizes, the light output of the LED. As a result, the nonlinearity and drift characteristics of the LED can be virtually eliminated. The output photodiode produces a photocurrent that is linearly related to the light output of the LED. The close matching of the photodiodes and advanced design of the package ensure the high linearity and stable gain characteristics of the optocoupler.
