DMG1029SV - MOSFET

Description

This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

General Purpose Interfacing Switch Power Management Functions Analog Switch

Features

  • Low On-Resistance.
  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Ultra-Small Surface Mount Package.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOT563.
  • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: L.

📥 Download Datasheet

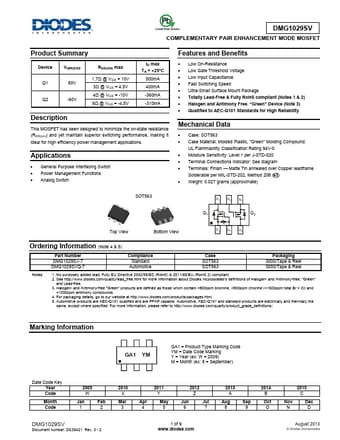

Datasheet preview – DMG1029SV

📁 Similar Datasheet

Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
NEW PRODUCT DMG1029SV COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 Q2 V(BR)DSS 60V -60V RDS(ON) max 1.7Ω @ VGS = 10V 3Ω @ VGS = 4.5V 4Ω @ VGS = -10V 6Ω @ VGS = -4.5V ID max TA = +25°C 500mA 400mA -360mA -310mA Description This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications  General Purpose Interfacing Switch  Power Management Functions  Analog Switch Features and Benefits  Low On-Resistance  Low Gate Threshold Voltage  Low Input Capacitance  Fast Switching Speed  Ultra-Small Surface Mount Package  Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)  Halogen and Antimony Free.
