DM74ALS646 - Octal 3-STATE Bus Transceiver and Register

Description

This device incorporates an octal bus transceiver and an octal D-type register configured to enable multiplexed transmission of data from bus to bus or internal register to bus.

Features

  • totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. The high-impedance state and increased high-logic level drive provides this device with the capability of being connected directly to and driving the bus lines in a bus-organized system without the need for interface or pull-up components. They are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The registers in.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DM74ALS1011A Triple 3 Input AND Buffer National
DM74ALS1242 Quad Bidirectional Bus Drivers National Semiconductor
DM74ALS1242A Quad Bidirectional Bus Driver National
DM74ALS132 DM74ALS132 Quad 2-Input NAND Gate with Schmitt Trigger Inputs National Semiconductor
DM74ALS138 3 to 8 Line Decoder/Demultiplexer National Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
DM74ALS640A Inverting Octal Bus Transceiver
DM74ALS645A Octal Bus Transceivers
DM74ALS652 Octal 3-STATE Bus Transceiver and Register
DM74ALS00A Quad 2-Input NAND Gate
DM74ALS02 Quad 2-Input NOR Gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

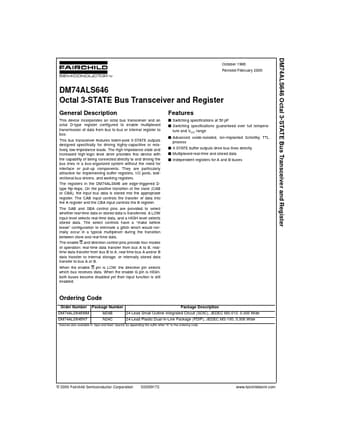

DM74ALS646 Octal 3-STATE Bus Transceiver and Register October 1986 Revised February 2000 DM74ALS646 Octal 3-STATE Bus Transceiver and Register General Description This device incorporates an octal bus transceiver and an octal D-type register configured to enable multiplexed transmission of data from bus to bus or internal register to bus. This bus transceiver features totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. The high-impedance state and increased high-logic level drive provides this device with the capability of being connected directly to and driving the bus lines in a bus-organized system without the need for interface or pull-up components.
