FGPF4565 - IGBT

Description

Using innovative field stop IGBT technology, Fairchild’s new series of field stop trench IGBTs offer the optimum performance for IPL (Intense Pulsed Light).

PD TJ Tstg TL Desc

Features

  • High Current Capability.
  • Low Saturation Voltage: VCE(sat) =1.5 V(Typ. ) @ IC = 30 A.
  • High Input Impedance.
  • RoHS Compliant.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FGP3040G2-F085 N-Channel IGBT ON Semiconductor
FGP30B Glass Passivated Ultrafast Rectifier Vishay
FGP30C Glass Passivated Ultrafast Rectifier Vishay
FGP30D Glass Passivated Ultrafast Rectifier Vishay
FGP3440G2-F085 N-Channel IGBT ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
FGPF4533 PDP IGBT
FGPF4536 360V PDP Trench IGBT
FGPF45N45T PDP Trench IGBT
FGPF4633 PDP Trench IGBT
FGPF10N60UNDF IGBT

Full PDF Text Transcription

Click to expand full text

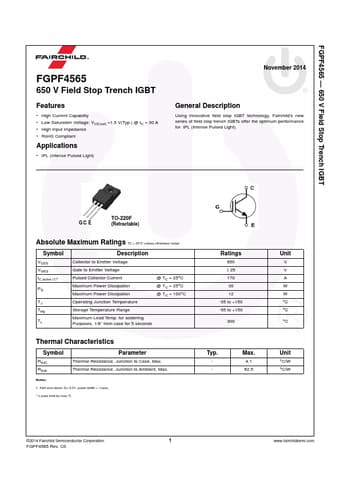

FGPF4565 — 650 V Field Stop Trench IGBT FGPF4565 650 V Field Stop Trench IGBT Features • High Current Capability • Low Saturation Voltage: VCE(sat) =1.5 V(Typ.) @ IC = 30 A • High Input Impedance • RoHS Compliant Applications • IPL (Intense Pulsed Light) November 2014 General Description Using innovative field stop IGBT technology, Fairchild’s new series of field stop trench IGBTs offer the optimum performance for IPL (Intense Pulsed Light).
