RMPA2263 WCDMA Power Amplifier Module

RMPA2263 Description

RMPA2263 PRELIMINARY May 2005 RMPA2263 i-Lo™ WCDMA Power Amplifier Module 1920 *1980 MHz .
The RMPA2263 Power Amplifier Module (PAM) is Fairchild’s latest innovation in 50 Ohm matched, surface mount modules targeting UMTS/WCDMA/HSDPA applica.

RMPA2263 Features

* 40% WCDMA efficiency at +28 dBm Pout
* 14% WCDMA efficiency (85 mA total current) at +16 dBm Pout
* Linear operation in low-power mode up to +19 dBm
* Low quiescent current (Iccq): 25 mA in low-power mode
* Meets UMTS/WCDMA performance requirements
* Meets HSDPA performance

RMPA2263 Applications

* Answering the call for ultra-low DC power consumption and extended battery life in portable electronics, the RMPA2263 uses novel proprietary circuitry to dramatically reduce amplifier current at low to medium RF output power levels (< +16 dBm), where the handset most often operates. A simple two-st

📥 Download Datasheet

Preview of RMPA2263 PDF

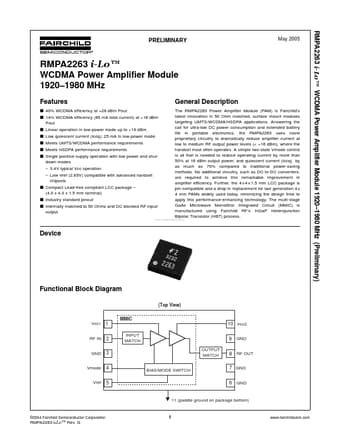

datasheet Preview Page 2 datasheet Preview Page 3
