RMPA0913C-58

3.5V AMPS/CDMA Power Amplifier

RMPA0913C-58 Datasheet (257.01 KB)

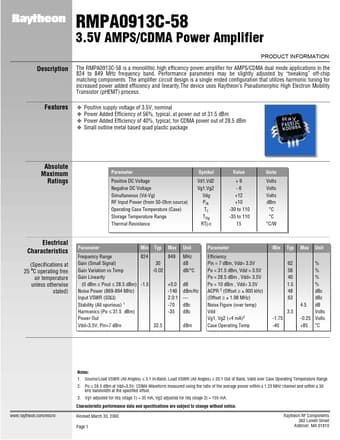

Preview of RMPA0913C-58 PDF Datasheet

Datasheet Details

Part number:

RMPA0913C-58

Manufacturer:

ETC

File Size:

257.01 KB

Description:

3.5v amps/cdma power amplifier.

RMPA0913C-58 Features

* Absolute Maximum Ratings Parameter Positive DC Voltage Negative DC Voltage Simultaneous (Vd-Vg) RF Input Power (from 50-Ohm source) Operating Case Temperature (Case) Storage Temperature Range Thermal Resistance Symbol Vd1,Vd2 Vg1,Vg2 Vdg PIN TC TStg RTj-c Value +9 -6 +12 +10 -30 to 110 -35 to 11

RMPA0913C-58 General Description

The RMPA0913C-58 is a monolithic high efficiency power amplifier for AMPS/CDMA dual mode applications in the 824 to 849 MHz frequency band. Performance parameters may be slightly adjusted by “tweaking” off-chip matching components. The amplifier circuit design is a single ended configuration that u.
