RMPA0959 - CDMA and CDMA2000-1X PowerEdge Power Amplifier Module

RMPA0959 Description

RMPA0959 CDMA and CDMA2000-1X PowerEdge™ Power Amplifier Module www.DataSheet4U.com March 2006 RMPA0959 CDMA and CDMA2000-1X PowerEdge™ Power Amplifi.
The RMPA0959 power amplifier module (PAM) is designed for cellular band AMPS, CDMA and CDMA2000-1X applications.

RMPA0959 Features

* Single positive-supply operation with low power and shutdown modes
* 39% CDMA efficiency at +28dBm average output power
* 53% AMPS mode efficiency at +31dBm output power
* Lead-free RoHS compliant 4 x 4 x 1.5mm leadless
* Internally matched to 50Ω and DC blocked RF input/output

📥 Download Datasheet

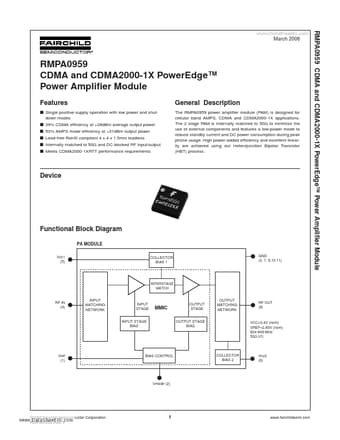

Preview of RMPA0959 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RMPA0959
Manufacturer
Fairchild Semiconductor
File Size
547.86 KB
Datasheet
RMPA0959_FairchildSemiconductor.pdf
Description
CDMA and CDMA2000-1X PowerEdge Power Amplifier Module
