RMPA0951AT Datasheet - Fairchild Semiconductor

RMPA0951AT 3V Cellular CDMA PowerEdge Power Amplifier Module

The RMPA0951AT is a dual mode, small-outline Power Amplifier Module (PAM) for Cellular CDMA personal communication system applications. The PA is internallymatched to 50Ω and DC blocked which minimizes the use of external components and reduces circuit complexity for system designers. High AMPS/CDMA.

RMPA0951AT Features

* Single positive-supply operation High dual-mode (AMPS/CDMA) efficiency Excellent linearity Small size: 6.0 x 6.0 x 1.5 mm3 LCC package 50Ω matched input and output module Adjustable quiescent current and power-down mode Suitable f

RMPA0951AT_FairchildSemiconductor.pdf

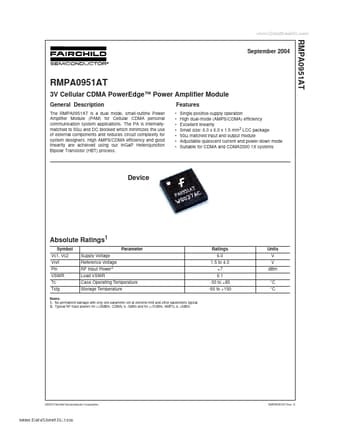

Preview of RMPA0951AT PDF
RMPA0951AT Datasheet Preview Page 2 RMPA0951AT Datasheet Preview Page 3

Datasheet Details

Part number:

RMPA0951AT

Manufacturer:

Fairchild Semiconductor

File Size:

582.69 KB

Description:

3v cellular cdma poweredge power amplifier module.
