RMPA0963 Datasheet - Fairchild Semiconductor

Cellular CDMA CDMA2000-1X and WCDMA Power Amplifier Module

RMPA0963 Features

* 38% CDMA/WCDMA efficiency at +28 dBm Pout

* 14% CDMAA/WCDMA efficiency (80 mA total current) at +16 dBm Pout

* Meets HSDPA performance requirements

* Linear operation in low-power mode up to +19 dBm

* 50% AMPS mode efficiency at +31 dBm Pout

* Low quiescent current (Iccq):

RMPA0963 General Description

The RMPA0963 Power Amplifier Module (PAM) is Fairchild’s latest innovation in 50 Ohm matched, surface mount modules targeting Cellular CDMA/WCDMA/HSDPA, AMPS and Wireless Local Loop (WLL) applications. Answering the call for ultra-low DC power consumption and extended battery life in portable electr.

RMPA0963 Datasheet (151.84 KB)

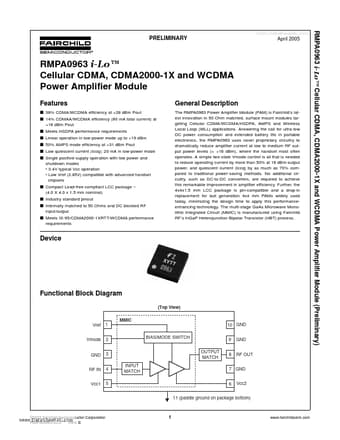

RMPA0963 Datasheet Preview — Preview of RMPA0963 PDF

Datasheet Details

Part number:

RMPA0963

Manufacturer:

Fairchild Semiconductor

File Size:

151.84 KB

Description:

Cellular cdma cdma2000-1x and wcdma power amplifier module.
