GBJ2506, GBJ25005 Silicon Bridge Rectifiers

GBJ2506 Description

Production specification Silicon Bridge Rectifiers GBJ25005 *GBJ2510 .

GBJ2506 Features

* z Rating to 1000V PRV z Surge overload rating to 350 Amperes peak z Ideal for printed circuit board Pb Lead-free z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 MECHANCAL DATA z Polarity: Symbols m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ2506, GBJ25005. Please refer to the document for exact specifications by model.

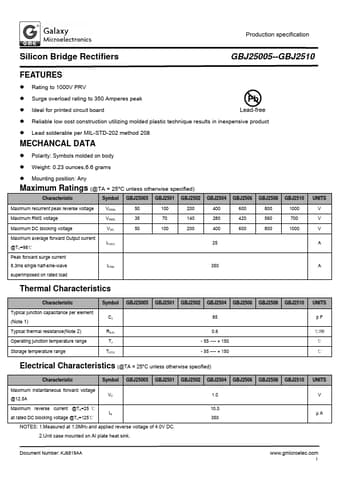

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBJ2506, GBJ25005
Manufacturer
GME
File Size
147.32 KB
Datasheet
GBJ25005-GME.pdf
Description
Silicon Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: GBJ2506, GBJ25005.
Please refer to the document for exact specifications by model.
