• Part: GBJ2508
  • Description: Silicon Bridge Rectifiers
  • Manufacturer: Galaxy Microelectronics
  • Size: 503.97 KB
GBJ2508 Datasheet (PDF) Download

Related GBJ2508 Datasheets

Galaxy Microelectronics
GBJ2508

Key Features

  • Glass Passivated Die Construction
  • High Case Dielectric Strength of 2500VRMS
  • Low Reverse Leakage Current
  • Surge Overload Rating to 350A Peak
  • Ideal for Printed Circuit Board Applications
  • UL Listed under Recognized ponent Index File Number E95060
  • Lead-Free Finish; RoHS pliant (Notes 1 &

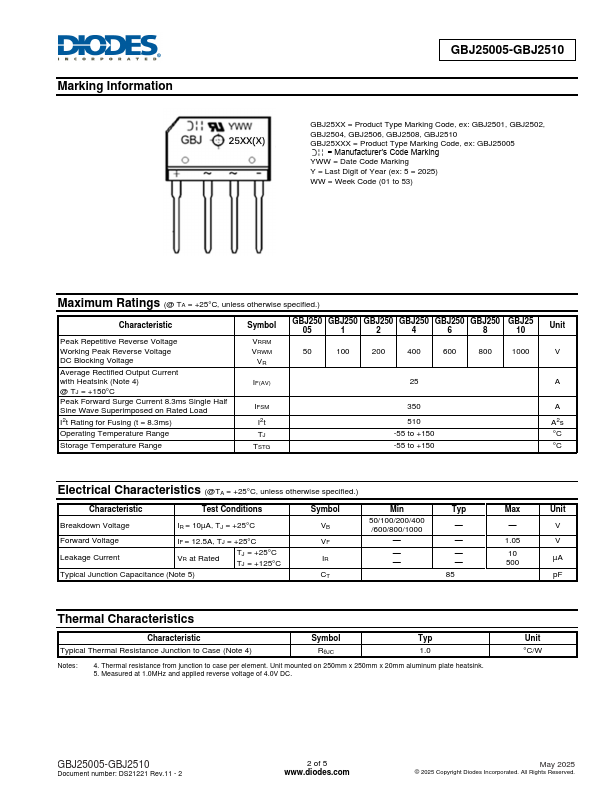

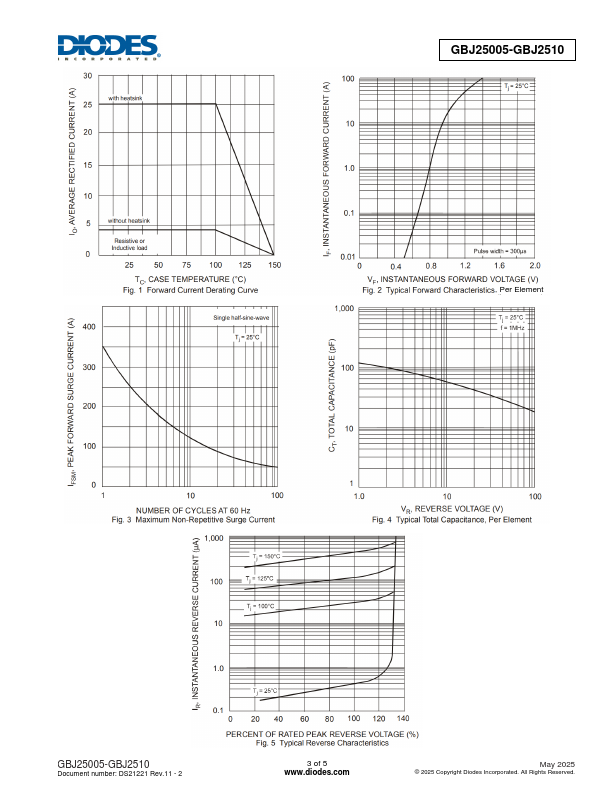

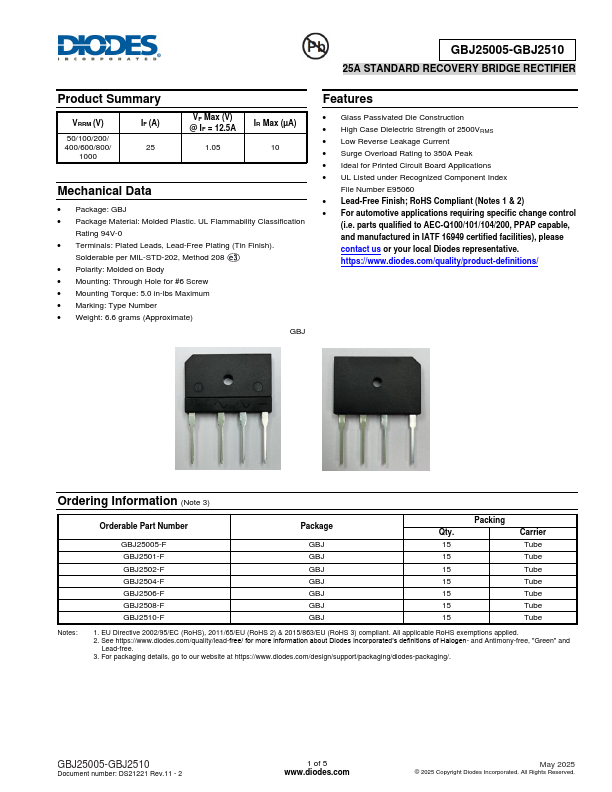

GBJ2508 datasheet preview
