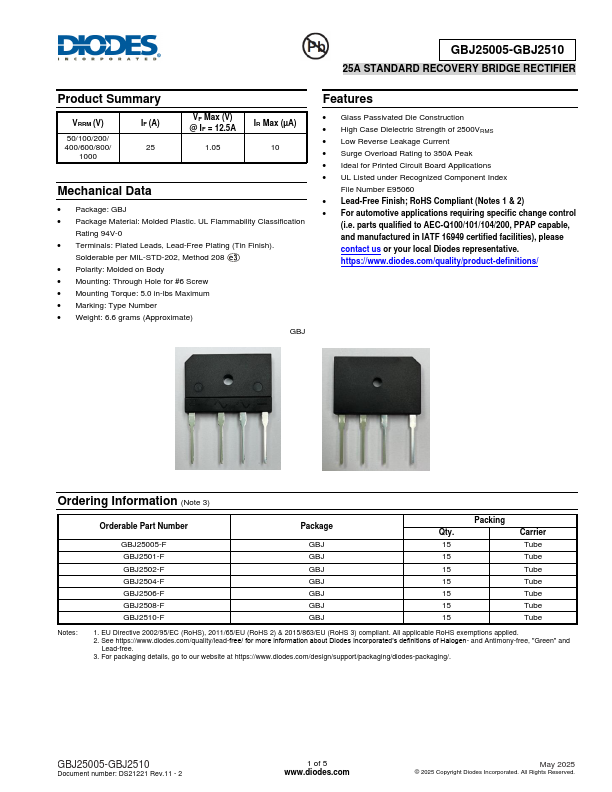

GBJ2506 - Silicon Bridge Rectifiers

Download the GBJ2506 datasheet PDF. This datasheet also covers the GBJ25005 variant, as both devices belong to the same silicon bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • z Rating to 1000V PRV z Surge overload rating to 350 Amperes peak z Ideal for printed circuit board Pb Lead-free z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBJ25005-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ2506 25 Amp Glass Passivated Bridge Rectifier Micro Commercial Components
GBJ2506 Single Phase Bridge Rectifiers Sirectifier
GBJ2506 25A Miniature Glass Passivated Single-Phase Bridge Rectifiers CITC
GBJ2506 GLASS PASSIVATED BRIDGE SINGLE PHASE BRIDGE RECTIFIERS MOSPEC
GBJ2506 SINGLE-PHASE BRIDGE RECTIFIER Suntan

Other Datasheets by Galaxy Microelectronics

Part Number Description
GBJ25005 Silicon Bridge Rectifiers
GBJ2501 Silicon Bridge Rectifiers
GBJ2502 Silicon Bridge Rectifiers
GBJ2504 Silicon Bridge Rectifiers
GBJ2508 Silicon Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

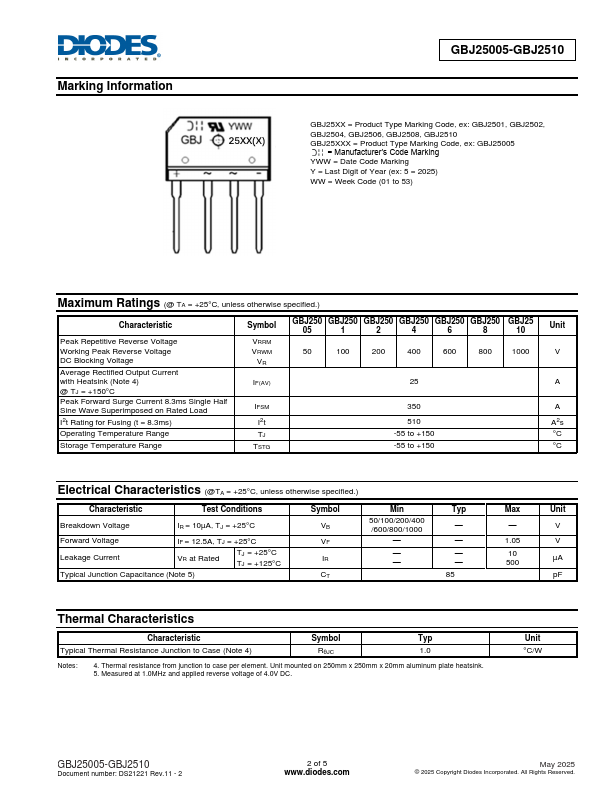

Production specification Silicon Bridge Rectifiers GBJ25005--GBJ2510 FEATURES z Rating to 1000V PRV z Surge overload rating to 350 Amperes peak z Ideal for printed circuit board Pb Lead-free z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 MECHANCAL DATA z Polarity: Symbols molded on body z Weight: 0.23 ounces,6.6 grams z Mounting position: Any Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBJ25005 GBJ2501 GBJ2502 GBJ2504 GBJ2506 GBJ2508 GBJ2510 Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward Output current @TC=98℃ Peak forward surge current 8.
