HMS135N10K Datasheet - H&M Semiconductor

HMS135N10K N-Channel Super Trench II Power MOSFET

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency.

HMS135N10K Features

* VDS =100V,ID =135A RDS(ON)=3.4mΩ , typical @ VGS=10V ID=1A RDS(ON)=3.9mΩ , typical @ VGS=10V ID=20A

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-252

HMS135N10K Datasheet (1.30 MB)

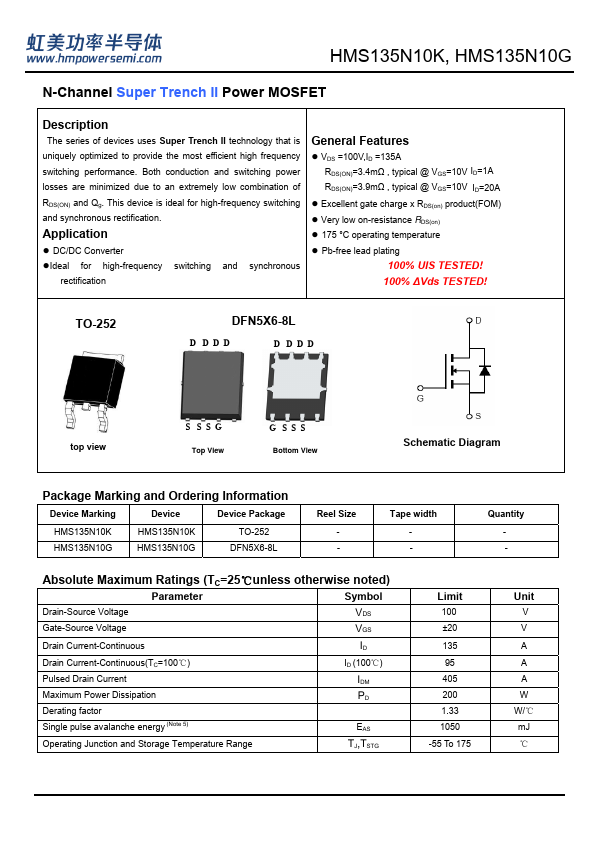

Preview of HMS135N10K PDF

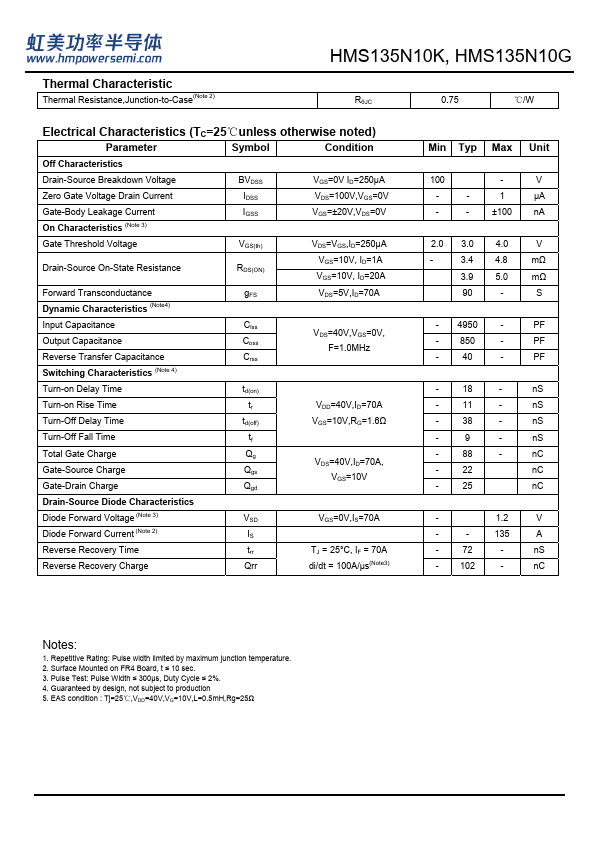

HMS135N10K Datasheet Preview Page 2 HMS135N10K Datasheet Preview Page 3

Datasheet Details

Part number:

HMS135N10K

Manufacturer:

H&M Semiconductor

File Size:

1.30 MB

Description:

N-channel super trench ii power mosfet.
