HMS180N06A Datasheet - H&M Semiconductor

HMS180N06A N-Channel Super Trench Power MOSFET

The HMS180N06A uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

HMS180N06A Features

* VDS =60V,ID =120A RDS(ON) = 2.1mΩ (Typ) @ VGS=10V (Typ:3.5mΩ) RDS(ON) = 3.6mΩ (Typ) @ VGS=4.5V (Typ:4.0mΩ)

* Excellent gate charge x RDS(on) product

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating

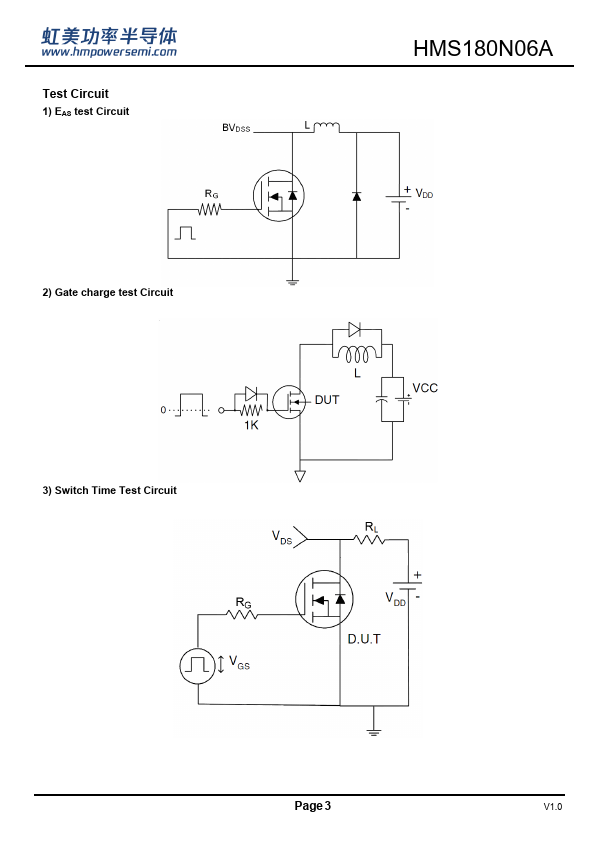

* 100% UIS tested Schematic diagram H

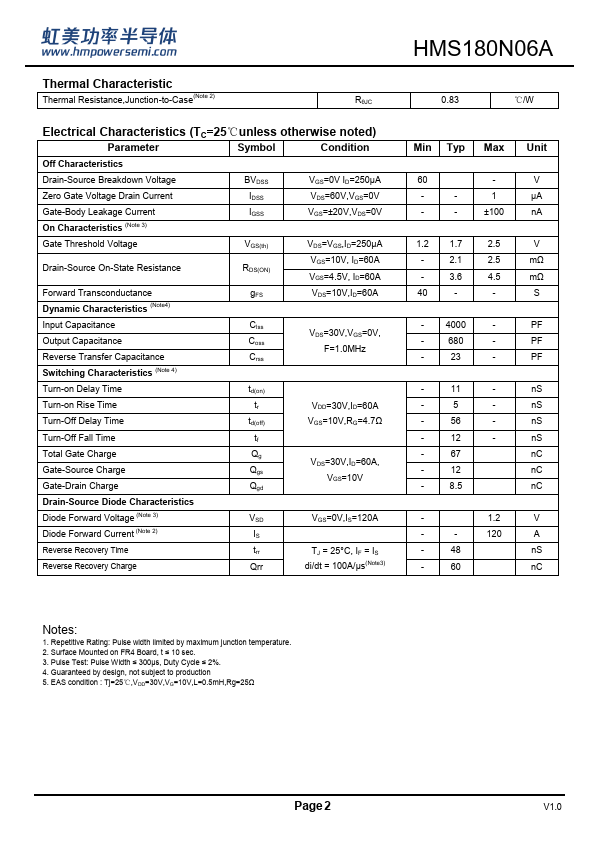

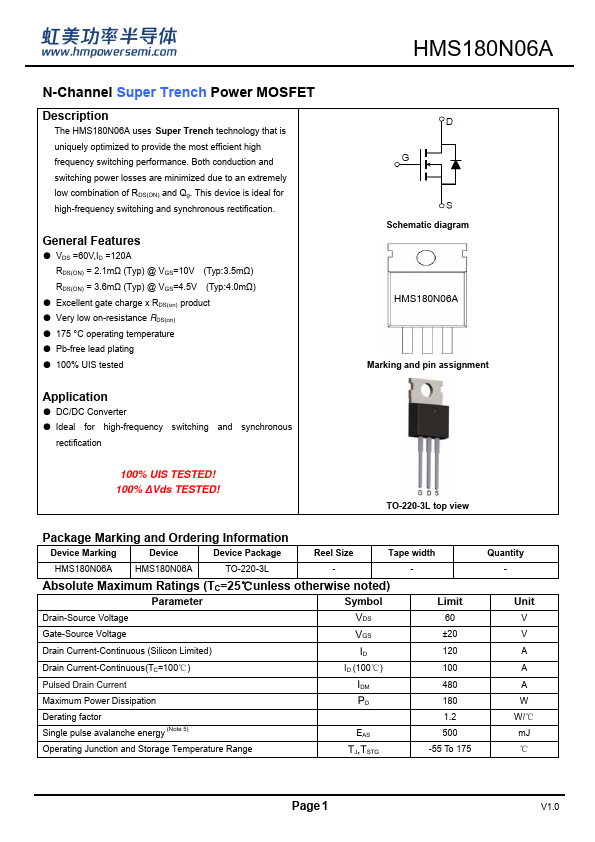

HMS180N06A Datasheet (623.94 KB)
