HMS35N20A N-Channel Super Trench Power MOSFET

The HMS35N20A uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching .

HMS35N20A Features

* VDS =200V,ID =35A RDS(ON)=43mΩ (typical) @ VGS=10V RDS(ON)=50mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* LED backlighting

HMS35N20A Datasheet (565.27 KB)

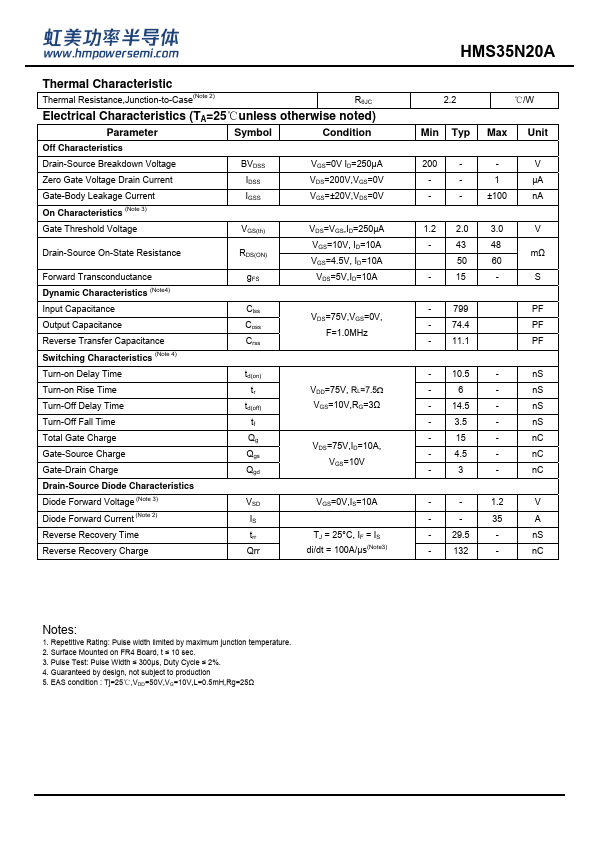

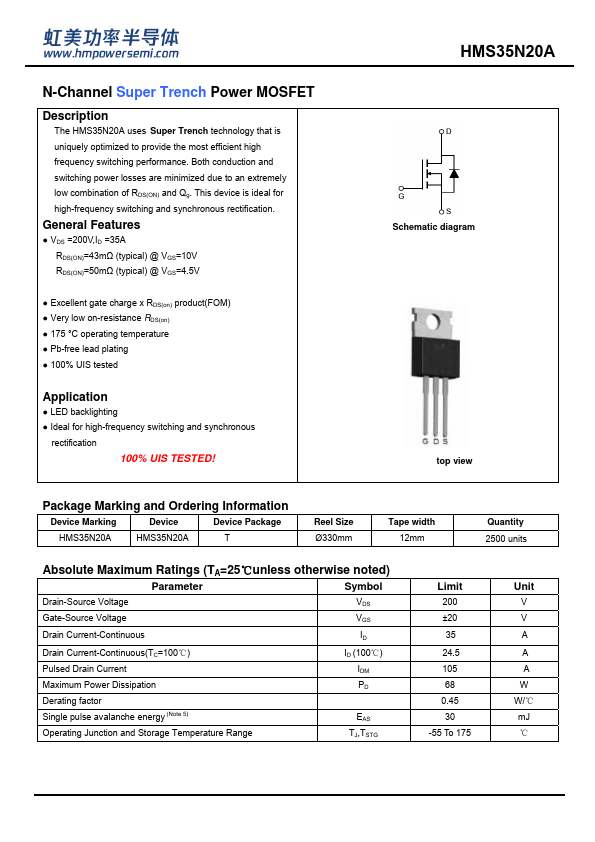

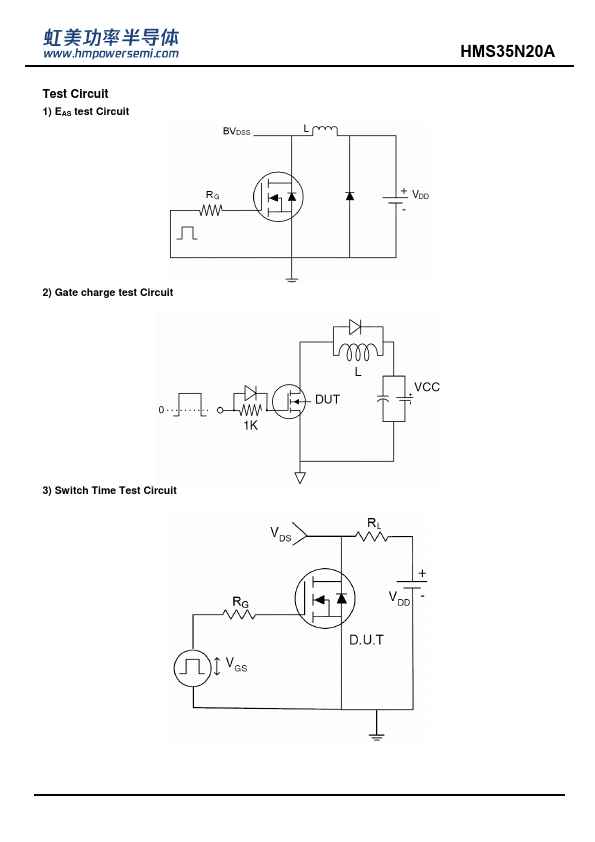

HMS35N20A Datasheet Preview — Preview of HMS35N20A PDF

Datasheet Details

Part number:

HMS35N20A

Manufacturer:

H&M Semiconductor

File Size:

565.27 KB

Description:

N-channel super trench power mosfet.
