HMS4296 Datasheet - H&M Semiconductor

HMS4296 N-Channel Super Trench Power MOSFET

The +06 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching an.

HMS4296 Features

* VDS =100V,ID =12A RDS(ON)=9.9mΩ (typical) @ VGS=10V RDS(ON)=11.5mΩ (typical) @ VGS=4.5V Schematic diagram

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Marking and p

HMS4296 Datasheet (455.86 KB)

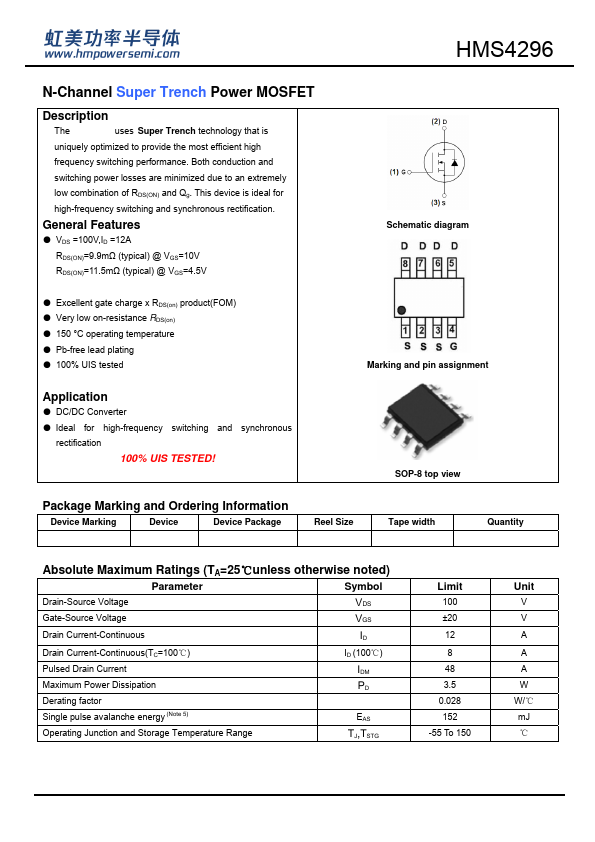

Preview of HMS4296 PDF

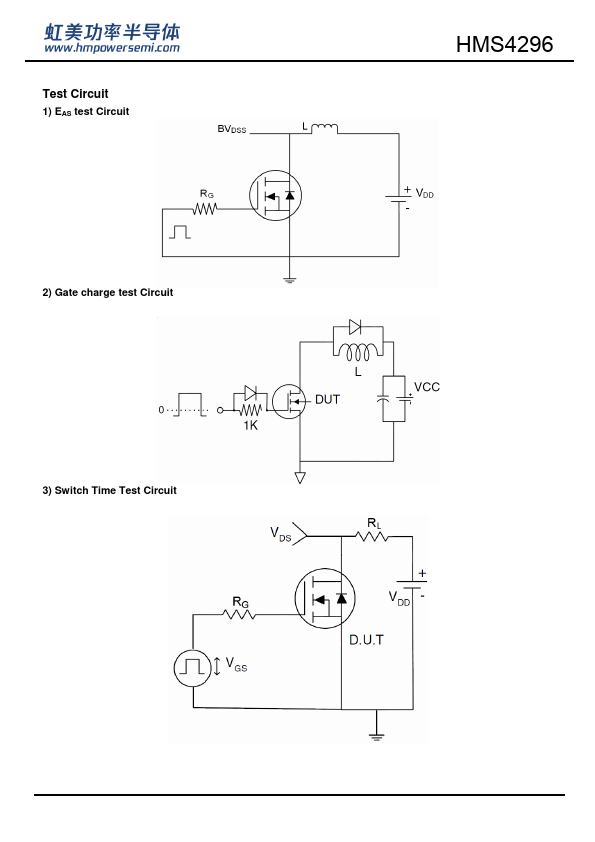

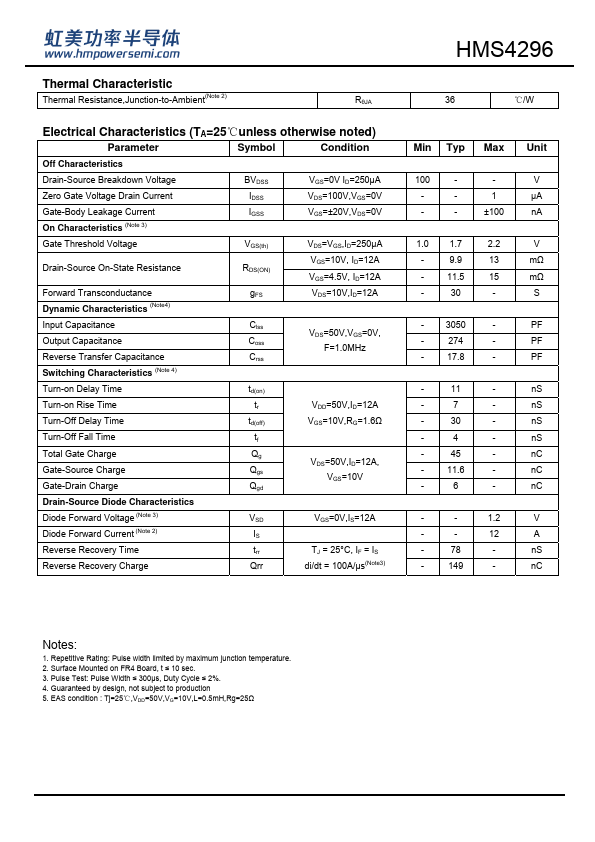

HMS4296 Datasheet Preview Page 2 HMS4296 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS4296

Manufacturer:

H&M Semiconductor

File Size:

455.86 KB

Description:

N-channel super trench power mosfet.
