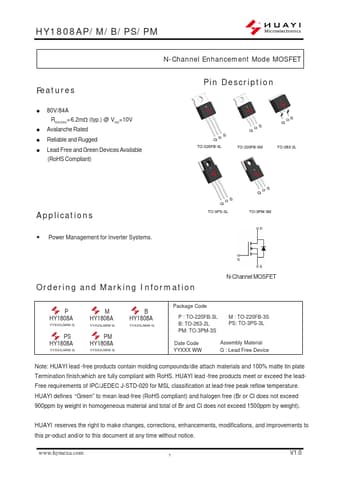

HY1808PS
Features
- 80V/84A
RDS(ON)= 6.2mΩ (typ.) @ VGS=10V
- Avalanche Rated
- Reliable and Rugged
- Lead Free and Green Devices Available
(Ro HS pliant)
N-Channel Enhancement Mode MOSFET
Pin Description
DS G TO-220FB-3L
DS G TO-220FB-3S
DS G TO-263-2L
Applications
- Power Management for Inverter Systems.
DS G TO-3PS-3L
DS G TO-3PS-3M
G N-Channel MOSFET
Ordering and Marking Information
P HY1808A
YYÿ XXXJWW G
PS HY1808A
YYÿ XXXJWW G
M HY1808A
YYÿ XXXJWW G
PM HY1808A
YYÿ XXXJWW G
B HY1808A
YYÿ XXXJWW G
Package Code
P : TO-220FB-3L B: TO-263-2L PM: TO-3PS-3M
M : TO-220FB-3S PS: TO-3PS-3L
Date Code YYXXX WW
Assembly Material G : Lead Free Device
Note: HOOYI lead-free products contain molding pounds/die attach materials and 100% matte tin plate termination finish; which are fully pliant with Ro HS. HOOYI lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J-STD-020D for MSL classification at lead-free peak reflow temperature. HOOYI defines “Green” to mean...
