9FGV0641, 6-Output Very Low-Power PCIe Gen 1-2-3-4 Clock Generator

The 9FGV0641 is a member of IDT's SOC-Friendly 1.8V Very-Low-Power PCIe clock family. The device has integrated 100 ohm output terminations providing direction connection to 100 ohm transmission lines. The device also has 6 output enables for clock management and supports 2 different spread spectrum.

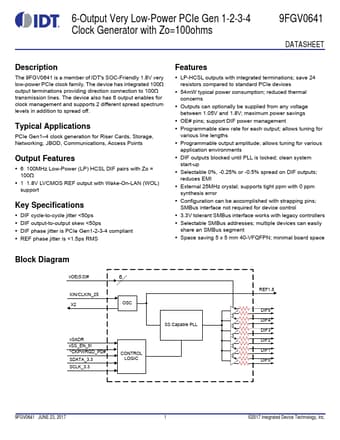

datasheet Preview Page 1 from Datasheet4u.com

9FGV0641-IDT.pdf

9FGV0641 Datasheet Preview — Preview of 9FGV0641 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

9FGV0641

Manufacturer:

IDT

File Size:

259.59 KB

Description:

6-Output Very Low-Power PCIe Gen 1-2-3-4 Clock Generator

9FGV0641 Features

* 6 - 100MHz Low-Power (LP) HCSL DIF pairs w/Zo=100

* 1 - 1.8V LVCMOS REF output w/Wake-On-LAN (WOL) support Key Specifications

* DIF cycle-to-cycle jitter

9FGV0641 Distributors
