* / Advantages:
* High speed switching with low capacitances
* High blocking voltage with low RDS(on)
* Easy to parallel and simple to drive
* Avalanche ruggedness
* Resistant to latch-up Applications:
* Solar inverters
* High voltage DC/DC conv

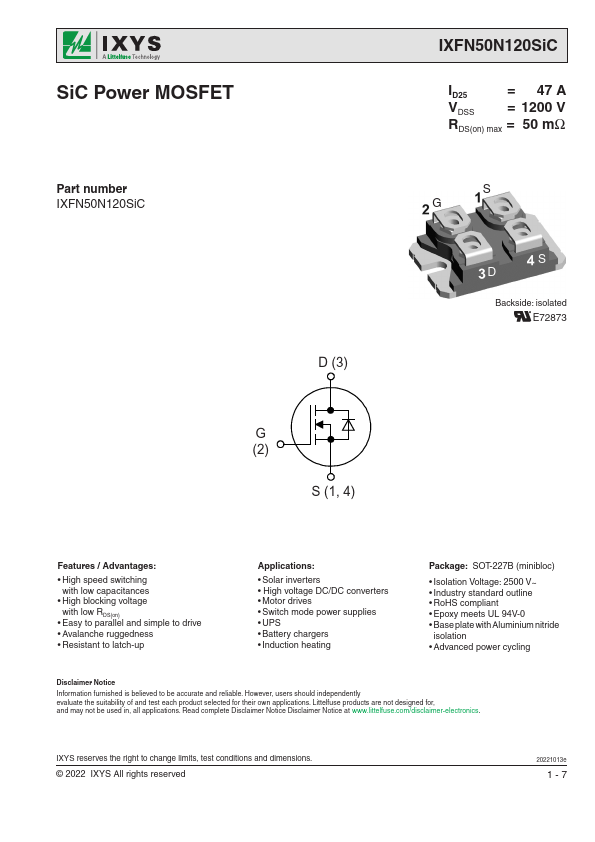

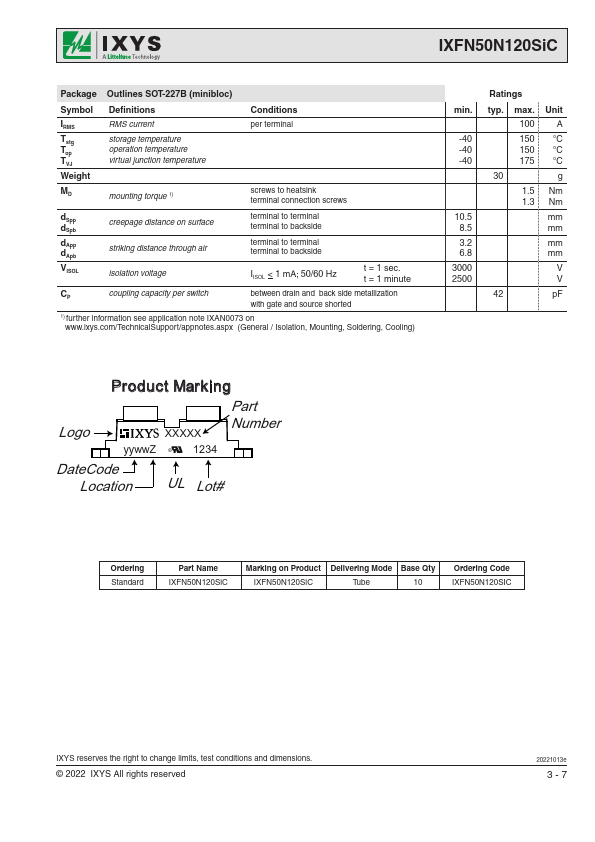

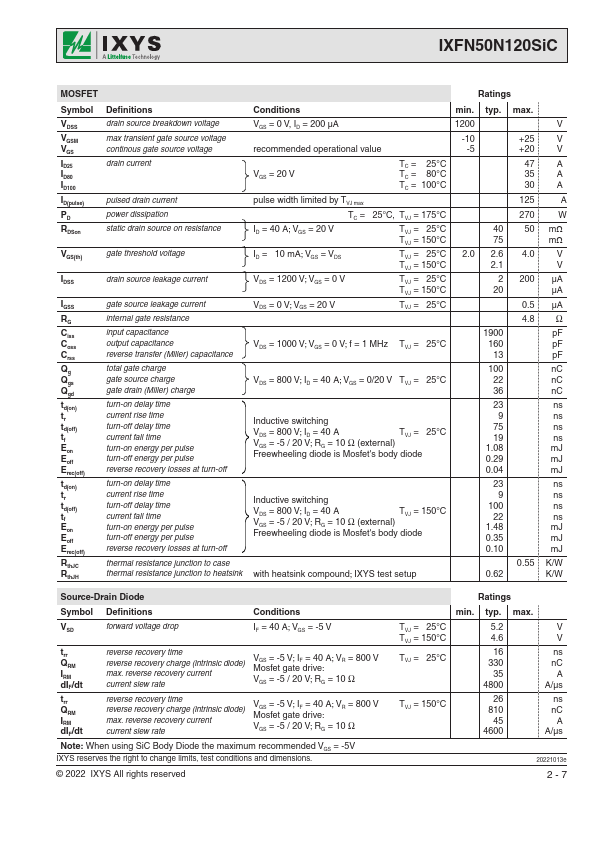

IXFN50N120SiC Datasheet (622.90 KB)
IXFN50N120SiC
IXYS
622.90 KB
Sic power mosfet.
SiC Power MOSFET Part number IXFN50N120SiC D (3) G (2) S (1, 4) IXFN50N120SiC ID25 = 47 A VDSS = 1200 V R = DS(on) max 50 mΩ S G S D Backside: .
