2SB1115 - Transistor

Features

  • World standard miniature package. Low VCE(sat): VCE(sat)=-0.2V at 1A Absolute Maximum Ratings Ta = 25 Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector current (pulse).
  • Total power dissipation Junction temperature Storage temperature range.
  • Pulsed: PW 10 ms, duty cycle 50% Symbol VCBO VCEO VEBO IC IC PT Tj Tstg Rating -60 -50 -6 -1 -2 2 150 -55 to +150 Unit V V V A A W Electrical Characteristics Ta = 25 Parameter Coll.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SB1115 - PNP Transistor (NEC)
  • 2SB1115 - PNP SILICON EPITAXIAL TRANSISTOR (Renesas)
  • 2SB1115A - PNP Transistor (NEC)
  • 2SB1110 - PNP Transistor (Hitachi Semiconductor)
  • 2SB1114 - PNP Transistor (NEC)
  • 2SB1116 - PNP SILICON TRANSISTORS (NEC)
  • 2SB1116 - PNP EPITAXIAL SILICON TRANSISTOR (UTC)
  • 2SB1116 - PNP General Purpose Transistor (Weitron)
  • 2SB1116 - PNP Transistor (JCST)
  • 2SB1116 - PNP Plastic Encapsulated Transistor (SeCoS)
Other Datasheets by Kexin

Full PDF Text Transcription

Click to expand full text

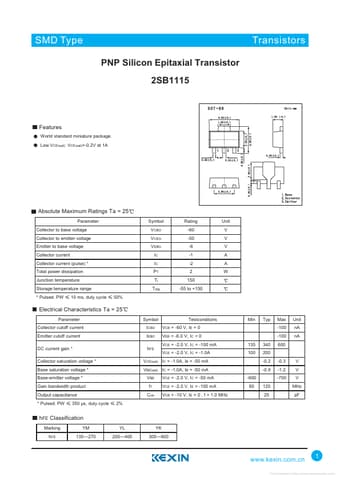

SMD Type PNP Silicon Epitaxial Transistor 2SB1115 Transistors Features World standard miniature package. Low VCE(sat): VCE(sat)=-0.
