LTP-7357AG LED Display

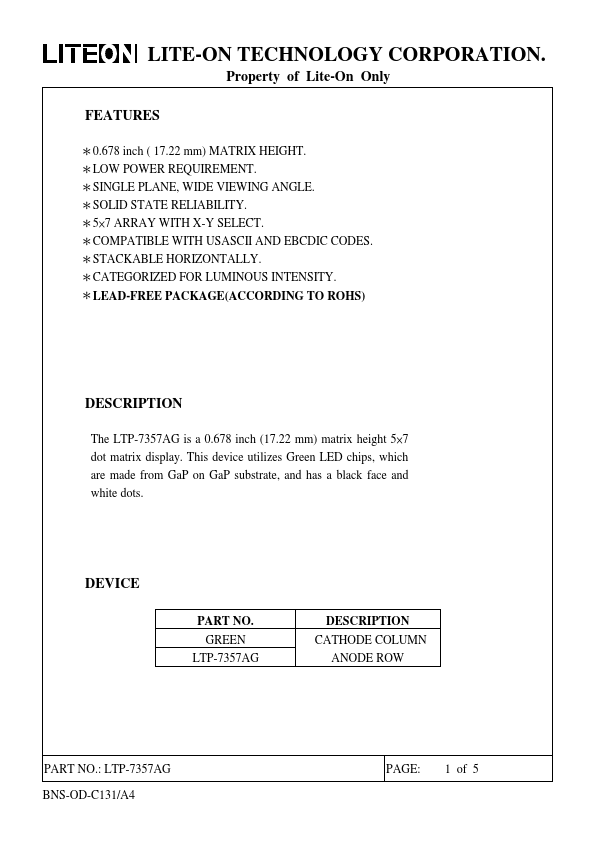

The LTP-7357AG is a 0.678 inch (17.22 mm) matrix height 5×7 dot matrix display. This device utilizes Green LED chips, which are made from GaP on GaP substrate, and has a black face and white dots. DEVICE PART NO. GREEN LTP-7357AG DESCRIPTION CATHODE COLUMN ANODE ROW PART NO.: LTP-7357AG BNS-OD-C.

LTP-7357AG Features

* ＊0.678 inch ( 17.22 mm) MATRIX HEIGHT. ＊LOW POWER REQUIREMENT. ＊SINGLE PLANE, WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊5×7 ARRAY WITH X-Y SELECT. ＊COMPATIBLE WITH USASCII AND EBCDIC CODES. ＊STACKABLE HORIZONTALLY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. ＊LEAD-FREE PACKAGE(ACCORDING TO ROHS) DESC
