MD-179 Datasheet - MACOM

MD-179 Termination Insensitive Mixer

The unique design of the termination insensitive mixer (TIM) enables it to apply high reverse voltage to diodes during their “off” phase, in the LO cycle. This allows for higher power level performance with minimum distortion. In addition the TIM has internal loads that provide a good match and also.

MD-179 Datasheet (716.29 KB)

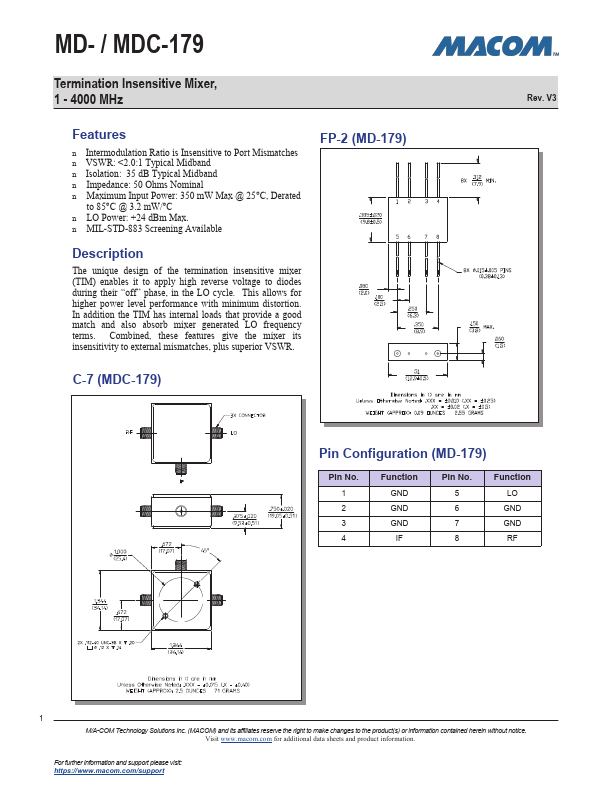

Preview of MD-179 PDF

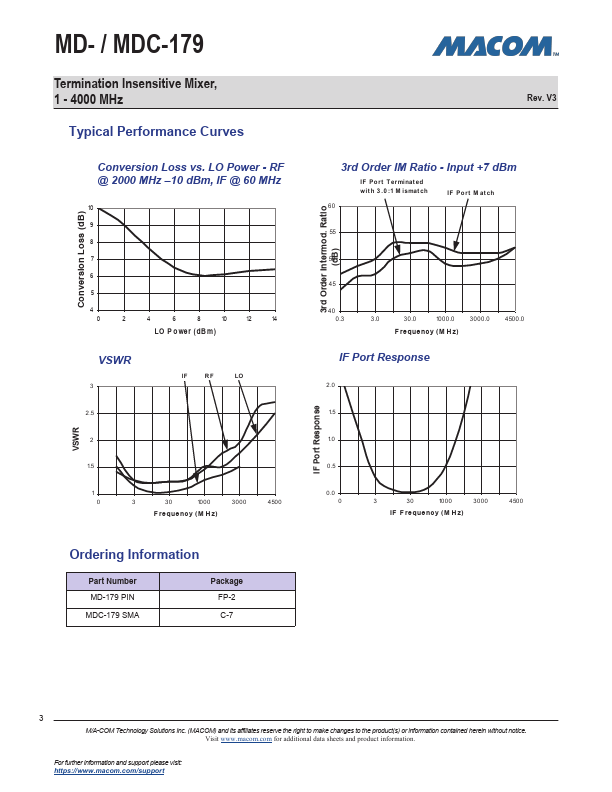

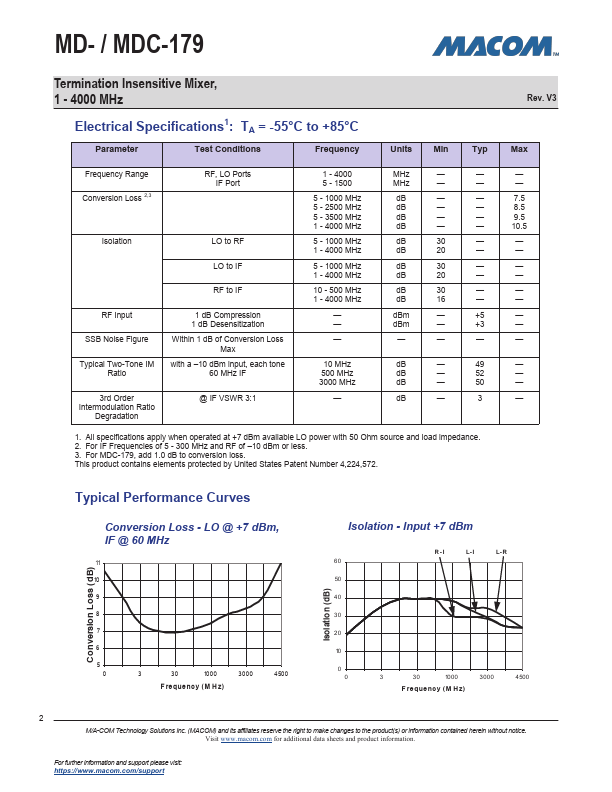

MD-179 Datasheet Preview Page 2 MD-179 Datasheet Preview Page 3

Datasheet Details

Part number:

MD-179

Manufacturer:

MACOM

File Size:

716.29 KB

Description:

Termination insensitive mixer.
