MP4560 Datasheet - MPS

MP4560, 55V Step-Down Converter

The MP4560 is a high frequency step-down switching regulator with integrated internal highside high voltage power MOSFET. It provides 2A output with current mode control for fast loop response and easy compensation. The wide 3.8V to 55V input range accommodates a variety of step-down applications, i.

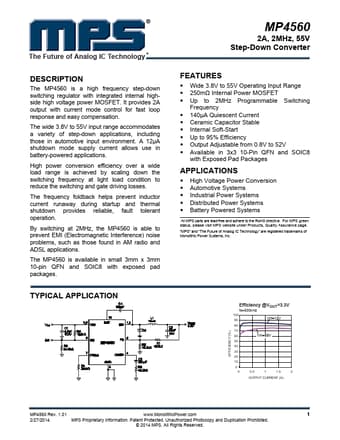

Datasheet Preview Page 1

MP4560-MPS.pdf

Preview of MP4560 PDF
MP4560 Datasheet Preview Page 2 MP4560 Datasheet Preview Page 3

Datasheet Details

Part number:

MP4560

Manufacturer:

MPS

File Size:

404.78 KB

Description:

55V Step-Down Converter

MP4560 Features

* Wide 3.8V to 55V Operating Input Range

* 250mΩ Internal Power MOSFET

* Up to 2MHz Programmable Switching Frequency

* 140μA Quiescent Current

* Ceramic Capacitor Stable

* Internal Soft-Start

* Up to 95% Efficiency

* Output Adjustable from 0.8V to 52V
