MP4561DQ, MP4561 - 55V Step-Down Converter

MP4561DQ Description

The Future of Analog IC Technology MP4561 1.5A, 2MHz, 55V Step-Down Converter .
The MP4561 is a high frequency step-down switching regulator with integrated internal highside high voltage power MOSFET.

MP4561DQ Features

* Wide 3.8V to 55V Operating Input Range
* 300mΩ Internal Power MOSFET
* Up to 2MHz Programmable Switching Frequency
* 140μA Quiescent Current
* Ceramic Capacitor Stable
* External Soft-Start
* Up to 95% Efficiency
* Output Adjustable from 0.8V to 52V
* Available

MP4561DQ Applications

* including those in automotive input environment. A 12µA shutdown mode supply current allows use in battery-powered applications. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate drivi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP4561DQ, MP4561. Please refer to the document for exact specifications by model.

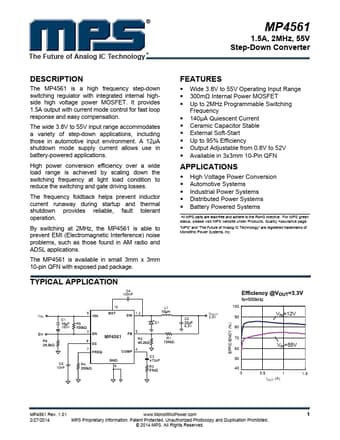

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP4561DQ, MP4561
Manufacturer
MPS
File Size
325.54 KB
Datasheet
MP4561-MPS.pdf
Description
55V Step-Down Converter
Note
This datasheet PDF includes multiple part numbers: MP4561DQ, MP4561.
Please refer to the document for exact specifications by model.
