MP4568GQ

Step-Down Converter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Monolithic Power Systems MP4568GQ-Z IC REG BUCK ADJ 100MA 10QFN DigiKey 0 5000 units
$0.78

MP4568GQ Datasheet (888.54 KB)

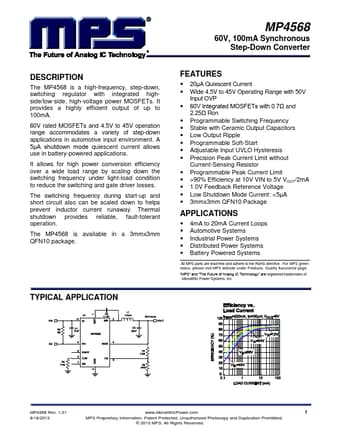

Preview of MP4568GQ PDF Datasheet

Datasheet Details

Part number:

MP4568GQ

Manufacturer:

MPS

File Size:

888.54 KB

Description:

Step-down converter

MP4568GQ Features

* 20μA Quiescent Current

* Wide 4.5V to 45V Operating Range with 50V Input OVP

* 60V Integrated MOSFETs with 0.7Ω and 2.25Ω Ron

* Programmable Switching Frequency

* Stable with Ceramic Output Capacitors

* Low Output Ripple

* Programmable Soft-Start

* Adjustable Input

MP4568GQ General Description

The MP4568 is a high-frequency, step-down, switching regulator with integrated highside/low-side, high-voltage power MOSFETs. It provides a highly efficient output of up to 100mA. 60V rated MOSFETs and 4.5V to 45V operation range accommodates a variety of step-down applications in automotive input e.
