LX8383A-33CP, LX8, 7.5 A LOW DROPOUT POSITIVE REGULATORS

The LX8383/8383A/8383B series ICs are positive regulators designed to provide 7.5A output current. All internal circuitry is designed to operate down to a 1V input-to-output differential, so the LX8383/ 83A/83B can operate with greater efficiency than previously available devices. The dropout voltag.

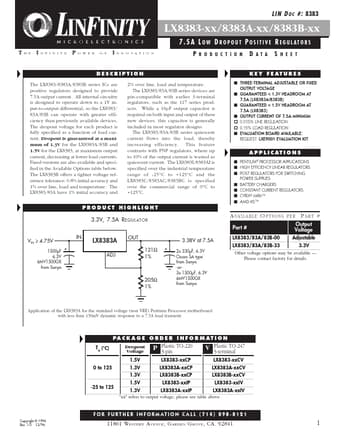

LX8-383.pdf

LX8383A-33CP Datasheet Preview — This datasheet PDF includes multiple part numbers: LX8383A-33CP, LX8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LX8383A-33CP, LX8

Manufacturer:

Microsemi ↗ Corporation

File Size:

200.87 KB

Description:

7.5 A LOW DROPOUT POSITIVE REGULATORS

Note:

This datasheet PDF includes multiple part numbers: LX8383A-33CP, LX8.
Please refer to the document for exact specifications by model.

LX8383A-33CP Features

* expected of a voltage regulator: short circuit protection, safe operating area protection and automatic thermal shutdown if the device temperature rises above approximately 165°C. Use of an output capacitor is REQUIRED with the LX8383/83A/ 83B series. Please see the table below for recommended minim
