SN74LS12 - TRIPLE 3-INPUT POSITIVE-NAND GATES

Motorola

Datasheet Details

Part number	SN74LS12
Manufacturer	Motorola
File Size	105.85 KB
Description	TRIPLE 3-INPUT POSITIVE-NAND GATES
Datasheet	SN74LS12 Datasheet
Additional preview pages of the SN74LS12 datasheet.

📁 Similar Datasheet

SN74LS12 - POSITIVE-NAND GATE (Texas Instruments)
SN74LS122 - Retriggerable Monostable Multivibrator (ON Semiconductor)
SN74LS122 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS (Texas Instruments)
SN74LS123 - Retriggerable Monostable Multivibrator (ON Semiconductor)
SN74LS123 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS (Texas Instruments)
SN74LS124 - Dual Voltage Controller Oscillators (Motorola Semiconductor)
SN74LS125A - QUADRUPLE BUS BUFFERS (Texas Instruments)
SN74LS125A - Quad 3-State Buffer (ON Semiconductor)
SN74LS126A - QUADRUPLE BUS BUFFERS (Texas Instruments)
SN74LS126A - Quad 3-State Buffer (ON Semiconductor)

Other Datasheets by Motorola

SN74LS122 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS
SN74LS123 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS
SN74LS125A - QUAD 3-STATE BUFFERS
SN74LS126A - QUAD 3-STATE BUFFERS
SN74LS10 - TRIPLE 3-INPUT NAND GATE
SN74LS107A - DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP
SN74LS109A - DUAL JK POSITIVE EDGE-TRIGGERED FLIP-FLOP
SN74LS11 - TRIPLE 3-INPUT AND GATE

Full PDF Text Transcription

Click to expand full text

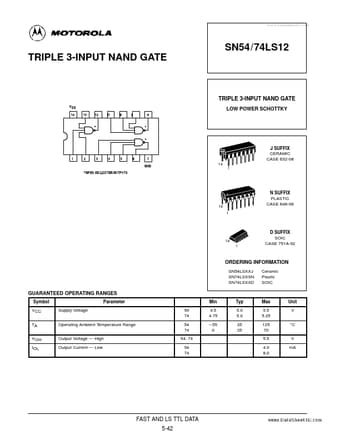

www.DataSheet4U.com SN54/74LS12 TRIPLE 3-INPUT NAND GATE TRIPLE 3-INPUT NAND GATE V CC 14 13 12 11 10 9 8 LOW POWER SCHOTTKY * * * 1 2 3 4 5 6 7 GND J SUFFIX CERAMIC CASE 632-08 14 1 * OPEN COLLECTOR OUTPUTS 14 1 N SUFFIX PLASTIC CASE 646-06 14 1 D SUFFIX SOIC CASE 751A-02 ORDERING INFORMATION SN54LSXXJ SN74LSXXN SN74LSXXD Ceramic Plastic SOIC GUARANTEED OPERATING RANGES Symbol VCC TA VOH IOL Supply Voltage Operating Ambient Temperature Range Output Voltage — High Output Current — Low Parameter 54 74 54 74 54, 74 54 74 Min 4.5 4.75 – 55 0 Typ 5.0 5.0 25 25 Max 5.5 5.25 125 70 5.5 4.0 8.
