NSI6801M Datasheet - NOVOSENSE

NSI6801M, Single-Channel Isolated Gate Driver

10 7.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 10 7.2. INSULATION SPECIFICATION FOR SOW8 PACKAGE 11 7.3. SAFETY-LIMITING VALUES FOR SOW8 PACKAGE 12 7.4. REGULATORY INFORMATION FOR SOW8 PACKAGE 13 8. FUNCTION DESCRIPTION 14 8.1. FUNCTIONAL BLOCK DIAGRAM 14 8.2. TRUTH TABLES.

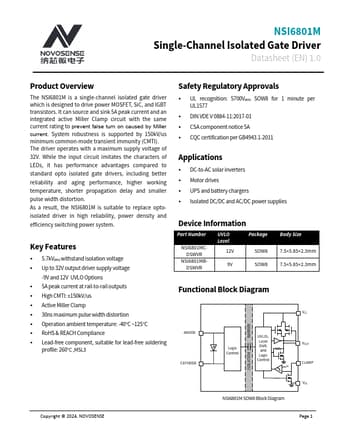

 Datasheet Preview Page 1

NSI6801M-NOVOSENSE.pdf

Preview of NSI6801M PDF

Datasheet Details

Part number:

NSI6801M

Manufacturer:

NOVOSENSE

File Size:

948.34 KB

Description:

Single-Channel Isolated Gate Driver

NSI6801M Features

* 5.7kVRMS withstand isolation voltage

* Up to 32V output driver supply voltage -9V and 12V UVLO Options

* 5A peak current at rail-to-rail outputs

* High CMTI: ±150kV/us

* Active Miller Clamp

* 30ns maximum pulse width distortion

* Operation ambient temperature: -40°C ~12
