MM74C154 Datasheet - National

4-Line to 16-Line Decoder/Demultiplexer

MM74C154 Features

* Y Y Y Y Supply voltage range Tenth power TTL compatible High noise margin High noise immunity 3V to 15V Drive 2 LPTTL loads 1V guaranteed 0 45 VCC (typ ) Applications Y Y Y Y Automotive Data terminals Instrumentation Medical electronics Y Y Y Y Alarm systems Industrial electronics Remote meter

MM74C154 General Description

The MM54C154 MM74C154 one of sixteen decoder is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors The device is provided with two strobe inputs both of which must be in the logical ‘‘0’’ state for normal operation If either strobe inpu.

MM74C154 Datasheet (101.32 KB)

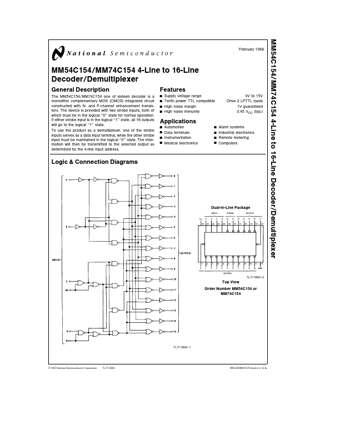

Preview of MM74C154 PDF

Datasheet Details

Part number:

MM74C154

Manufacturer:

National

File Size:

101.32 KB

Description:

4-line to 16-line decoder/demultiplexer.
MM54C154 MM74C154 4-Line to 16-Line Decoder Demultiplexer February 1988 MM54C154 MM74C154 4-Line to 16-Line Decoder Demultiplexer General Descriptio.
