CGS2534V Datasheet - National Semiconductor

CGS2534V, Quad 1 to 4 Clock Drivers

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds CGS2534 is a 4 to 16 inverting driver with TTL compatible I Os This device has skew specifications of 350 ps pin-topin as well as a 650 ps speci.

CGS2534V_NationalSemiconductor.pdf

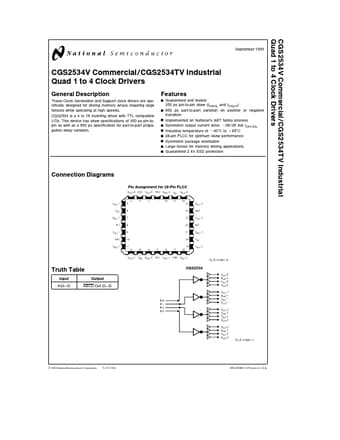

CGS2534V Datasheet Preview — Preview of CGS2534V PDF

Datasheet Details

Part number:

CGS2534V

Manufacturer:

National Semiconductor

File Size:

102.12 KB

Description:

Quad 1 to 4 Clock Drivers

CGS2534V Features

* Y Y Y Y Y Y Y Y Y Guaranteed and tested 350 ps pin-to-pin skew (tOSHL and tOSLH) 650 ps part-to-part variation on positive or negative transition Implemented on National’s ABT family process Symmetric output current drive b36 36 mA IOH IOL Industrial temperature of b40 C to a 85 C 28-pin PLCC for
