CGS2535TV

Commercial Quad 1 to 4 Clock Drivers/Industrial Quad 1 to 4 Clock Drivers

CGS2535TV Features

* n Guaranteed:

* 1.0 ns rise and fall times while driving 12 inches of 50Ω microstrip terminated with 25 pF

* 350 ps pin-to-pin skew (tOSLH and tOSHL) n 650 ps part-to-part variation on positive or negative transition @ 5V VCC n Operates with either 3.3V or 5.0V supply n Inputs 5V to

CGS2535TV General Description

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds. The CGS2535 is a non-inverting 4 to 16 driver with CMOS I/O structures. The CGS2535 specification guarantees partto-part skew variation. Featur.

CGS2535TV Datasheet (131.83 KB)

Preview of CGS2535TV PDF

Datasheet Details

Part number:

CGS2535TV

Manufacturer:

National Semiconductor

File Size:

131.83 KB

Description:

Commercial quad 1 to 4 clock drivers/industrial quad 1 to 4 clock drivers.
CGS2535V Commercial Quad 1 to 4 Clock Drivers/CGS2535TV Industrial Quad 1 to 4 Clock Drivers February 2004 CGS2535V/CGS2535TV Commercial Quad 1 to .

📁 Related Datasheet

CGS2535TV Commercial Quad 1 to 4 Clock Drivers/Industrial Quad 1 to 4 Clock Drivers (Texas Instruments)

CGS2535V Commercial Quad 1 to 4 Clock Drivers/Industrial Quad 1 to 4 Clock Drivers (National Semiconductor)

CGS2535V Commercial Quad 1 to 4 Clock Drivers/Industrial Quad 1 to 4 Clock Drivers (Texas Instruments)

CGS2534TV Quad 1 to 4 Clock Drivers (National Semiconductor)

CGS2534V Quad 1 to 4 Clock Drivers (National Semiconductor)

CGS2536TV Commercial/ Industrial Quad 1 to 4 Clock Drivers (National Semiconductor)

CGS2536V Commercial/ Industrial Quad 1 to 4 Clock Drivers (National Semiconductor)

CGS2537TV Industrial Quad Memory Array Clock Drivers (National Semiconductor)

CGS2537V Commercial Quad Memory Array Clock Drivers (National Semiconductor)

CGS253T200X8L High-Cap Screw Terminal Aluminum Electrolytic Capacitor (CDE)

TAGS

CGS2535TV Commercial Quad Clock Drivers Industrial Quad Clock Drivers National Semiconductor

Image Gallery

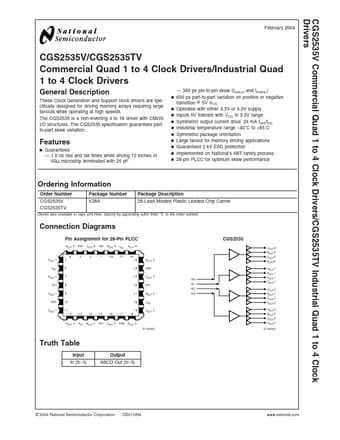

CGS2535TV Datasheet Preview Page 2 CGS2535TV Datasheet Preview Page 3
